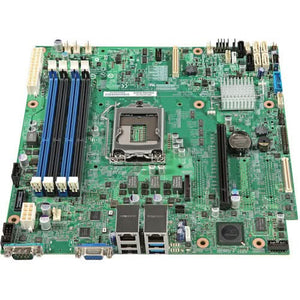

Intel S1200V3RPO Chipset-C224 Socket-LGA1150 32Gb DDR3L-1600MHz Rack-Mountable Micro-ATX Motherboard

Overview

The S1200V3RPO Intel Server Motherboard from Intel is a general purpose, single socket board supporting an Intel Xeon E3 processor and four DIMMs. It is equipped with two USB 2.0 and two USB 3.0 ports, six SATA ports, two LAN ports, and one LGA 1150 socket. These hardware features are accompanied by a 32GB maximum memory capacity with a maximum memory bandwidth of 25.6 GB/s, ensuring fast, efficient flow of data. This server motherboard also features integrated graphics support with a VGA output. Expansion options include PCIe x8 generation three slot and an I/O expansion module to easily connect compatible peripherals.



Specifications

Model Number:  S1200V3RPO

Brand:  Intel

Alt. Part Number(s):  S1200V3RPO

Product Type:  Motherboard



Technical Description

Brand:  Intel

Model:  S1200V3RPO

Board Form Factor:  uATX

Chassis Form Factor:  Rack

Socket:  LGA 1150

Sockets Supported:  4 UDIMM

Integrated BMC with IPMI:  Yes

Integrated Systems Available:  Yes

Rack-Friendly Board:  Yes

Embedded Options Available:  No

TDP:  95 W

Target Market:  Small business/1st server

Max Memory Size:  32 GB (dependent on memory type)

Memory Type:  DDR3L ECC UDIMM 1333/1600 MT/s

Number of Memory Channels:  2

Max Memory Bandwidth:  25.6 GB/s

DIMMs:  4

ECC Memory Support:  Yes*

Integrated Graphics:  Yes

Graphics Output:  VGA

Total Displays Supported:  1

Chipset:  Intel C224

PCIe Revision:  3.0

Maximum Number of PCIe Lanes:  16

PCIe Support:  PCIe x8 Gen 3:1

Connector for I/O Expansion Module:  1

Connector for Integrated RAID Module:  1

USB Revision:  USB 3.0

Number of USB 2.0 Ports:  2

Number of USB 3.0 Ports:  2

SATA Ports:  6

RAID Configuration:  Intel RST (0, 1, 10, 5)

Serial Port:  1

LAN Ports:  2

Integrated LAN:  2 x 1 GbE

Embedded USB (eUSB) Solid State Drive Option:  Yes



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
