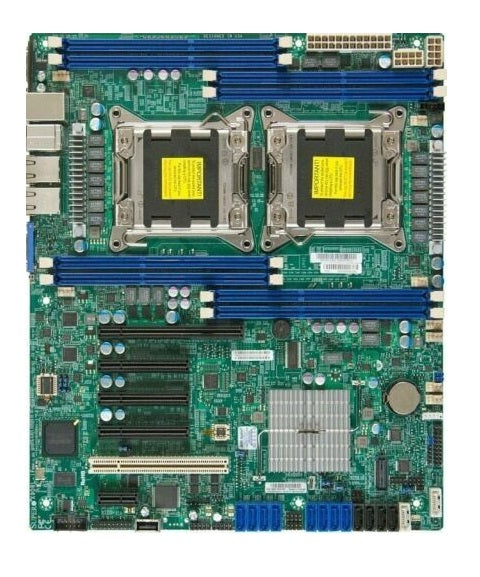

Supermicro X9DRL-3F Intel C606 LGA2011-Socket DDR3 SDRAM ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: X9DRL-3F
Brand: Supermicro
Alt Part Number(s): X9DRL-3F
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: X9DRL-3F
Chipset Type: Intel C606
Processor Socket: LGA2011 Socket
Max RAM Supported Size: 256 GB
RAMTechnology: DDR3 SDRAM
Network Controller: 2 x Intel 82574L
Network: 2 x Gigabit Ethernet
GraphicsProcessor: Matrox G200
Compatible Processors: Xeon E5-2600 series
Interface: Serial ATA-300, Serial ATA-600, Serial Attached SCSI
Connector(s): 2 x 7pin Serial ATA, 4 x 7pin Serial ATA, 8 x 7pin Serial ATA
Expansion Slots: 2 x CPU , 8 x DIMM 240-pin (1.5 V/ 1.35 V) , 1 x PCIe 3.0 x16 , 2 x PCIe 3.0 x8
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: ATX
Width: 12 in
Depth: 10 in
*
