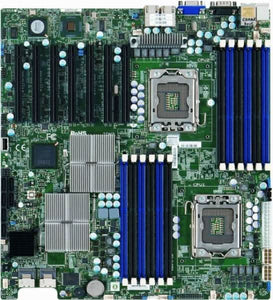

Supermicro X8DTH-IF Intel-5520 LGA-1366 DDR3-1333/1066MHz Extended ATX Server Motherboard

Specifications

Mfr Part Number:  X8DTH-IF

Brand:  Supermicro

Model Number:  X8DTH-IF-B

Type:  Motherboard

Note:  Board Only (Accessory Not Included)



Technical Description

Brand:  Supermicro

Model:  X8DTH-IF-B

Socket:  LGA-1366

CPU Supports:  Supports Intel 64-bit Quad-Core/ Dual-Core Xeon Processor, 5500 sequence (Nehalem-EP processor), QPI Upto 6.4 GT/s

Chipset:  Intel 5520 (Tylersburg) & ICH10R + 2x IOH-36D

Memory:  12x 240pin DDR3-1333/1066/800 DIMMs, ECC/REG, Upto 96GB, Memory Mirroring supported

Slots:  7x PCI-Express x8 Slot (Run on x16, Support PCI-Express 2.0)

SATA:  6x SATA2 Ports, Support RAID 0, 1, 5, 10

Video:  Matrox G200eW Graphics Controller

LAN:  Dual Intel 82576 Gigabit Ethernet Controllers, 1x Realtek RTL8201N PHY (dedicated IPMI)

Ports:  8x USB 2.0 Ports (4 rear, 4 by headers), 2x PS/2 Ports, 2x Serial Ports(1 rear, 1 by header optional), 1x VGA Port,2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN port

Form Factor:  Extended ATX,

Dimensions:  12.0 x 13.0 inch / 30.5 x 33.0 cm

RoHS Compliant:  Yes



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
