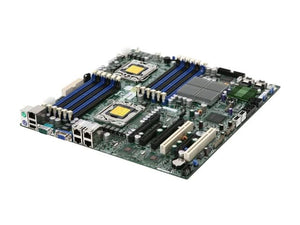

Supermicro X8DT3-LN4F Chipset-Intel 5520 Socket-LGA1366 192Gb DDR3-1333MHz Extended-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: X8DT3-LN4F
Brand: Supermicro
Alt Part Number(s): X8DT3-LN4F
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: X8DT3-LN4F
CPU: Dual LGA1366, QPI up to 6.4 GT/s, Supports up to two Intel 64-bit Xeon processors - Intel Xeon 5600 Series (Westmere) Processors, Intel Xeon 5500 Series (Nehalem-EP) Processors
Chipset: North Bridge Intel 5520 & South Bridge ICH10R + IOH-36D
Memory: 12x DDR3-1333/1066/800 DIMM Slots, Supports up to 192GB ECC/REG Memory or up to 48GB ECC/Non ECC Unbuffered Memory
Slots: 1x PCI-Express 2.0 x16 Slot (runs at x8); 2x PCI-Express 2.0 x8 Slots, 1x PCI-Express x4 Slot; 2x 33MHz PCI Slots
SATA: 6x SATA2 ports; Supports RAID 0, 1, 5, 10 (Windows), Supports RAID 0, 1, 10 (Linux)
SAS: LSI SAS1068E Controller, Supports RAID 0, 1, 10
Video: Matrox G200eW Integrated Graphics Controller
LAN: Dual Intel 82576 Dual-Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
Ports: 8x USB Ports (2 rear, 4 via header, 2 on-board); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 1x Serial Port; 4x RJ45 Ports; 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
RoHS Compliant: Yes
*
