Supermicro X7SBE / X7SBE-B Intel 3210 Intel Xeon 2-Core ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

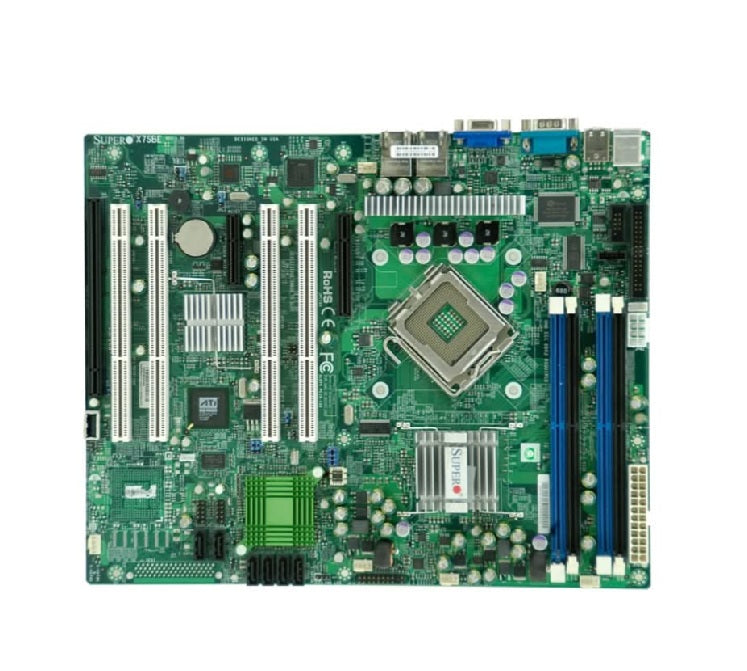

The Supermicro X7SBE is an ATX server motherboard designed for the Intel LGA 775 socket. It is built on the Intel 3210 chipset and is intended for entry-level server and workstation applications that require legacy PCI-X support.
Specifications
Model Number: X7SBE
Brand: Supermicro
Alt Part Number(s): X7SBE-B
Product Type: Motherboard
Technical Description
Model: X7SBE
Brand: Supermicro
Chipset Model: 3210
Processor Type: Intel Xeon
Processor Technology: Enhanced SpeedStep Technology
Processor Socket: Socket T LGA-775
Processor Type: Intel Xeon
Front Side Bus: 1333 MHz
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Standard: DDR2-800/PC2-6400
Memory Technology: DDR2 SDRAM
Controller Type: Serial ATA/300
Onboard Video: On-board Video Chipset
Graphics Controller Model: ES1000
Graphics Controller Memory: 32MB
Number of Total Expansion Slots: 6
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Network (RJ-45): Yes
Total Number of Onboard USB Ports: 2
Width: 12.0"
Depth: 9.6"
