Description
Specifications

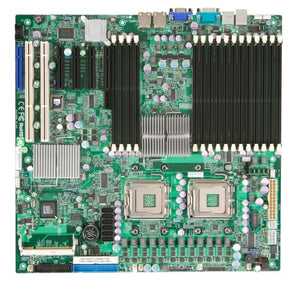

Model Number: X7DWN+
Brand: Supermicro
Alt. Part Number(s): X7DWN+
Product Type: Server Motherboard
Technical Description
Brand: Supermicro
Model: X7DWN+
CPU Socket Type: Dual LGA 771
CPU Type: Dual Intel Xeon
System Bus: 1600/1333/1066 MHz
Chipsets: Intel 5400
Number of DDR2 Slots: 16 x 240Pin
DDR2 Standard: DDR2 800
Maximum Memory Supported: 128GB
ECC Supported: Yes
Registered: FBDIMM
PCI Express x8: 3 (x8) PCI-e slots (2 w/ Gen 2.0)
PCI Express x4: 1 (x4) PCI-e slot (Using x8 slot)
PCI-X Slots (64-bit 133MHz): 2
Other Slots: 1x UIO slot
PATA: 1 x ATA 100 2 Dev. Max
SATA: 6 x SATA 3.0Gb/s
SATA RAID: RAID 0, 1, 5, 10 support (Windows only), RAID 0, 1, 10 support (Linux)
Onboard Video Chipset: ATI ES1000
LAN Chipset: Intel 82575
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Intel 82575
Second LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2 Ports: 2
COM ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 2 x USB 2.0
Onboard USB: 3x USB internal headers
Form Factor: Enhanced Extended ATX
Dimensions (W x L): 13.1" x 13.7"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
