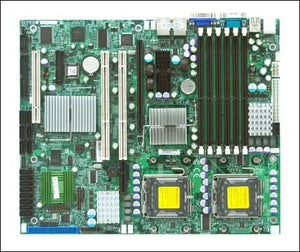

Supermicro X7DVL-3 / X7DVL-3-B Intel 5000V ATX Dual Intel Xeon Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
X7DVL-3 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
- Chipset Manufacturer: Intel
- Chipset Model: 5000V
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket J LGA-771
- Processor Supported: Xeon
- Front Side Bus: 667 MHz
- Front Side Bus: 1066 MHz
- Front Side Bus: 1333 MHz
Processor & Chipset
- Number of Memory Slots: 6
- Maximum Memory: 16 GB
- Memory Standard: DDR2-533/PC2-4200
- Memory Standard: DDR2-667/PC2-5300
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial Attached SCSI (SAS)
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/100 (ATA-6)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: XGI
- Graphics Controller Model: Volari Z7
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 1
- Number of PCI-X Slots: 2
- Total Number of PCI Express Slots: 1
- Number of PCI Express x8 Slots: 1
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Number of SAS Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 10.0"
- Depth: 12.0"
Physical Characteristics
-
Additional Information:
ROHS Compliant
Chipsets:
- 5000V (Blackford VS)
- MCH
- ESB2
- Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +12V, 12V, +3.3V standby, +5V standby and VBAT)
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Low noise fan speed control
- Platform Environment Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- Pulse Width Modulation (PWM) fan control
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection
- Power-up mode control for recovery from AC power loss
- Chassis intrusion detection
- System resource alert via Supero Doctor III
- 6x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- 3-pin fan support
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- CPU thermal trip support
- Thermal Control for 6x fan connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- Chassis intrusion header
- SDDC Support
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management
- Power-on mode for power recovery
- BIOS flash upgrade utility
- Device drivers
Miscellaneous
Hardware Monitoring:
ACPI Features:
Support CD Contents:
