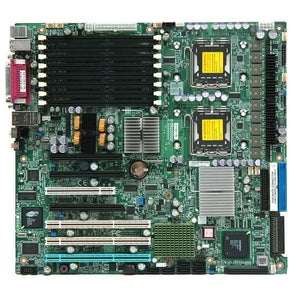

Supermicro X7DA8 / X7DA8-B Intel 5000X 32GB E-ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: X7DA8
Brand: Supermicro
Alt Part Number(s): X7DA8-B
Product Type: Server Motherboard
Technical Description
Brand: Supermicro
Model: X7DA8
CPU Socket Type: Dual LGA 771
CPU Type: Dual Intel Xeon
System Bus: 1333/1066 MHz
Chipsets: Intel 5000X
Number of DDR2 Slots: 8 x 240Pin
DDR2 Standard: DDR2 667
Maximum Memory Supported: 32GB
ECC Supported: Yes
Registered: FBDIMM
PCI Express x16: 1 x PCI Express x16
PCI Express x4: 1 (x4) PCI-e (using x16) slot
PCI-X Slots (64-bit 133MHz): 2
PCI-X Slots (64-bit 100MHz): 1
PCI Slots: 1 x PCI Slot
Other Slots: Low Profile IPMI 2.0 (SIMLP) Slot
PATA: 1 x ATA 100 2 Dev. Max
SATA: 6 x SATA 3.0Gb/s
SATA RAID: RAID 0, 1, 5, 10 support (Windows Only)
Audio Chipset: AC97 Codec
LAN Chipset: Intel 82563EB
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Intel 82563EB
Second LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2 Ports: 2
COM Ports: 1
LPT Ports: 1
USB 1.1/2.0: 4 x USB 2.0
Onboard USB: 1x USB internal header
Form Factor: Extended ATX
