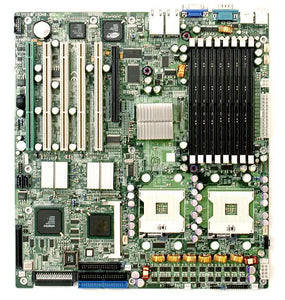

Supermicro X6DH8-XG2 Dual XEON Socket-604 E7520 Video LAN Extended-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
| Specifications | |
| Model Number | X6DH8-XG2 |
| Condition | Refurbished Board Only (Accessory Not Included) |
| Brand | Supermicro |
| Alt Part Number(s) | X6DH8-XG2-B |
| Type | Motherboard |
| Long Description | |
| Supermicro X6DH8-XG2 supports single or dual Intel Nocona processors at 800 MHz front side bus. Based upon Intel's NetBurst microarchitecture, the Nocona processor supports the IA-32 software and includes features found in the Xeon processor such as Hyper Pipelined Technology, which includes a multi-stage pipeline, allowing the processor to operate at much higher core frequencies. Packaged in a 604-pin Flip Chip Micro Pin Grid Array (FC-mPGA4) platform in a Zero Insertion Force (ZIF) socket (mPGA 604), the Nocona Processor (800 MHz) which supports Hyper-Threading Technology and Intel EM64T, is ideal for high performance workstation and server environments with up to two processors on one system bus. | |
| Features | |
| Integrated Input/Output Ports: | |
| USB 2.0 x 5 | |
| Serial Port x 2 | |
| RJ45 Lan Port x 2 | |
| PS/2 Mouse x 1 | |
| PS/2 Keyboard x 1 | |
| Floppy Port x 1 | |
| Expansion Slots | |
| PCI Express x16 x 1 | |
| PCI Express x4 x 1 | |
| PCI-X 64 Bit (133/100/66 MHz) x 3 | |
| PCI-X 64 Bit (100/66 MHz) x 2 | |
| RAID Support | |
| RAID 0 | |
| RAID 1 | |
| RAID 10 | |
| JBOD Support | |
| SATA RAID 0 | |
| SATA RAID 1 | |
| Storage Controller Type(s) Serial ATA x 2, SCSI Ultra320 x 2, DMA/ATA-100 (Ultra) x 2 | |
| South Bridge Chip Intel ICH5R | |
| Processor Socket Type Socket 604 | |
| Max supported CPUs qty 2 | |
| Memory Type DDR2 SDRAM, Number of Memory Slots 8 x 240 Pin DIMMs, Supported RAM speeds 400 MHz, Max Supported RAM 16 GB | |
| Audio / Video: Video Out Ports 15 Pin D-Sub VGA port x 1, Video Interface PCI, On Board Graphic Processor ATI Rage XL | |
| Installed Video Memory 8 MB | |
|
* | |
