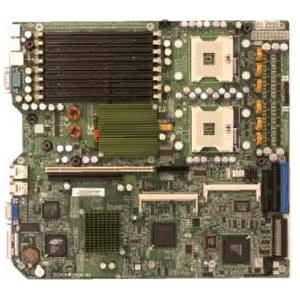

Supermicro X6DAR-8G E7525 DDR Xeon 3.8GB 800MHz 8MB Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
X6DAR-8G Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: E7525
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 800 MHz
Memory
- Maximum Memory: 32 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Ultra320 SCSI
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 4
- Number of PCI-X Slots: 1
- Total Number of PCI Express Slots: 2
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x16 Slots: 1
- Number of SXB-E Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Number of SCSI Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Physical Characteristics
- Width: 12.0"
- Depth: 13.1"
Miscellaneous
- Package Contents:
- X6DAR-8G Server Board
- Ribbon cable for IDE devices
- Floppy ribbon cable
- Supermicro CD or diskettes containing drivers and utilities
- User/BIOS Manual
-
Additional Information:
1x 64-bit PCI-X 133MHz slot and 1 x PCI Express x4 are inlined and use one at a time
Chipset:
- E7525
- MCH
- ICH5R
- PXH
- 82546GB
BIOS Features:
- 8Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, chipset voltage, memory voltage, +3.3V, +5V, +12V, 12V and 5V standby
- Fan status monitor with firmware/software on/off control
- CPU/chassis temperature monitors
- Environmental temperature monitor and control
- CPU fan auto-off in sleep mode
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection, +5V standby alert LED
- Power-up mode control for recovery from AC power loss
- Auto-switching voltage regulator for CPU core
- System overheat LED and control
- Chassis intrusion detection
- System resource alert
- Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
- Total of five 3-pin fan headers
- 5x fans with status monitoring
- Status monitor with firmware/software on/off control
- Low noise fan speed control
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 support
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC support
Support CD Contents:
- BIOS flash upgrade utility
- Device drivers
