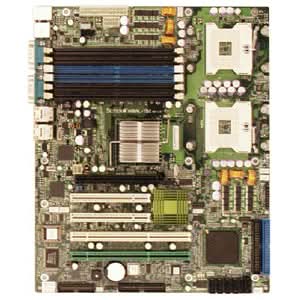

Supermicro X6DAL-TB2 Intel E7525 Socket-604 Intel XEON ATX Motherboard.
Roll over image to zoom in Click on image to zoom
Supermicro X6DAL-TB2 Intel E7525 Socket-604 Intel XEON ATX Motherboard.

Supermicro X6DAL-TB2 Intel E7525 Socket-604 Intel XEON ATX Motherboard.

Price:
$519.00
Supermicro Computer, IncSKU: 5019
Model Number: X6DAL-TB2
Condition: Refurbished
In stock:  Yes
No reviews

Description

Description

The Supermicro X6DAL-TB2 motherboard will blow away its competitors. It supports dual socket 604 Intel Xeon processors with up to an FSB of 800Mhz. It supports Hyper-Threading Technology.  It can support a total of 16GB of DDR2 memory with a total of 6 memory slots. The dual Gigabit ethernet ports controlled by the Broadcom BCM5721 LAN chipset will give you blazing fast internet speeds. Supermicro X6DAL-TB2 motherboard comes in the ATX form factor.


Specifications

Model

Brand
SUPERMICRO
Model
MBD-X6DAL-TB2-O

Supported CPU

CPU Socket Type
Dual 603/604
CPU Type
Dual Intel Xeon
System Bus
800/533MHz
Supported CPU Technologies
Hyper-Threading Technology

Chipsets

North Bridge
Intel E7525
South Bridge
Intel 6300ESB

Memory

Number of DDR2 Slots
6 x 240Pin
DDR2 Standard
DDR2 400
Maximum Memory Supported
12GB
Channel Supported
Dual Channel
ECC Supported
Yes
Registered
Yes

Expansion Slots

PCI Express x16
1
PCI-X Slots (64-bit 66MHz)
2
PCI Slots
2

Storage Devices

PATA
2 x ATA 100 4 Dev. Max
SATA
2 x SATA 1.5Gb/s
SATA RAID
0/1
Additional SATA
4 x SATA 1.5Gb/s
Additional SATA RAID
0/1

Onboard Video

Onboard Video Chipset
None

Onboard LAN

LAN Chipset
Broadcom BCM5721
LAN Speed
10/100/1000Mbps
Second LAN Chipset
Broadcom BCM5721
Second LAN Speed
10/100/1000Mbps
Max LAN Speed
Dual 10/100/1000Mbps

Rear Panel Ports

PS/2
2
COM
2
USB 1.1/2.0
2 x USB 2.0

Onboard USB

Onboard USB
2 x USB 2.0

Physical Spec

Form Factor
ATX
Dimensions
12" x 10"
