Description

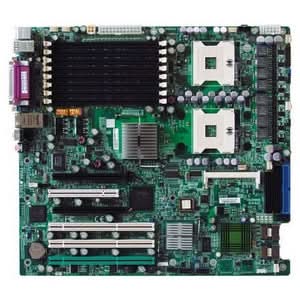

X6DA3-G2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
X6DA3-G2 Product Overview
- Chipset Manufacturer: Intel
- Chipset Model: E7525
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 800 MHz
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 16 GB
- Memory Standard: DDR2-400/PC2-3200
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial Attached SCSI (SAS)
- Controller Type: Serial ATA
- Controller Type: Ultra ATA/100 (ATA-6)
I/O Controller
- Sound Controller Manufacturer: Realtek
- Audio Channels: 5.1
Audio
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 6
- Number of PCI Slots: 1
- Number of PCI-X Slots: 3
- Total Number of PCI Express Slots: 2
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x16 Slots: 1
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Number of SAS Interfaces: 2
- Total Number of Onboard USB Ports: 4
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 13.1"
Physical Characteristics
-
Additional Information:
Chipsets:
- Intel E7525
- MCH
- ICH5R
- PXH
- 82546GB
- Onboard voltage monitors for CPU cores, chipset voltage, 3.3V, +5V, +12V, -12V and 3.3V standby, VBAT
- Fan status monitor by Thermal Management via BIOS
- CPU/chassis temperature monitors
- Environmental temperature monitor via Supero Doctor III
- CPU 4-phase-switching voltage regulator
- CPU thermal trip support for processor protection, +5V standby alert LED
- Power-up mode control for recovery from AC power loss
- System overheat LED and control
- Chassis intrusion detection
- System resource alert via Super Doctor III
- Status Monitor for Fan Speed Control
- Low noise fan control with Pulse Width Modulation (PWM)
- I2C Temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
- Total of eight 4-pin fan headers
- 8 proprietary fan headers
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connector
- Support 3-pin fans (without speed control)
- Status monitor for on/off control
- Status monitor for speed control
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- I2C temperature sensing logic
- CPU / System Overheat LED
- +5V Standby alert LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- ACPI/ACPM PWR Management with Main Switch Override Mechanism
- Wake-On-Ring (WOR) and Wake-On-LAN (WOL) Headers
- PWR-On mode for AC power recovery
- Internal/external modem ring-on
- STR-Suspend to RAM
- BIOS flash upgrade utility
- Device drivers
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.3
- PCI 2.2
- ACPI 1.0
- ACPI 1.0 (limited)
- USB Keyboard Support
- RTC (Real Time Clock) Wakeup
Miscellaneous
Hardware Monitoring:
ACPI Features:
Support CD Contents:
BIOS Features:
