Description

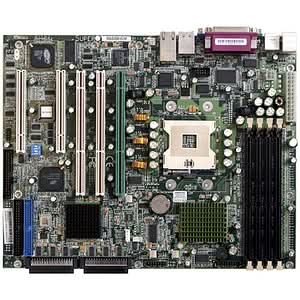

X5SS8-GM Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
X5SS8GM Product Overview
- Chipset Manufacturer: Broadcom
- Chipset Model: GC-SL
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 533 MHz
- Front Side Bus: 400 MHz
Processor & Chipset
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: DDR200/PC1600
- Memory Standard: DDR266/PC2100
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Ultra320 SCSI
- Controller Type: Floppy Controller
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Video
- Fast Ethernet: Yes
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 5
- Number of PCI Slots: 5
I/O Expansions
- Number of IDE Interfaces: 2
- Number of SCSI Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 9.6"
Physical Characteristics
-
Additional Information:
Hardware Monitoring:
- Onboard voltage monitors for CPU core, chipset voltage, +5V, +12V, - 12V, +3.3V and +2.5V
- Fan status monitor with firmware/software on/off control
- Environmental temperature monitor and control
- Power-up mode control for recovery from AC power loss
- System overheat LED and control
- System resource alert
- Total of four 3-pin fan headers
- 3x fans with tachometer monitoring
- Overheat backup fan connector
- Status monitor with firmware/software on/off control
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- BIOS flash upgrade utility
- Device Drivers
- 4Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- SMBIOS 2.3
- APM 1.2
- DMI 2.1
- ACPI 1.0
- BIOS rescue hot keys
- Hardware BIOS virus protection
Miscellaneous
ACPI Features:
Support CD Contents:
BIOS Features:
