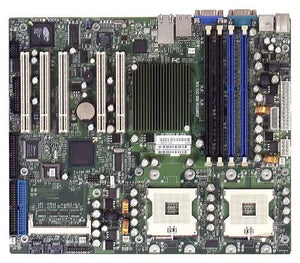

Supermicro X5DPA-TGM+ Intel-E7501 Socket-mPGA604 DDR-266MHz ATX Mother Board

$209.00 Regular price
Sale price$209.00
Model Number: X5DPA-TGM+
Condition: Refurbished
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.



Mfr Part Number:   X5DPA-TGM+

Brand:  Super Micro

Model Number:  X5DPA-TGM+

Type:  Mother Board

Note:  WithourAccessories


Technical Description

Brand:  Super Micro

Model:  X5DPA-TGM+

CPU Socket Type:  Dual mPGA604

CPU Type:  Dual Intel Xeon

System Bus:  533/400MHz

Chipsets:   Intel E7501

Number of DDR Slots:  4 x 184Pin

DDR Standard:  DDR266/200

Max Memory Supported:  8GB

Channel Supported:  Dual Channel

ECC Supported:  Yes

PCI Slots:  5

PATA:  2 x ATA 100 4 Dev. Max

SATA:  2 x SATA 1.5Gb/s


Onboard Video Chipset:  ATI RAGE XL

LAN Chipset:   Intel 82541

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Intel 82551QM

Second LAN Speed:  10/100Mbps

Max LAN Speed:  10/100/1000Mbps + 10/100Mbps

Form Factor:  ATX

Dimensions:   12" x 10"



ACPI/APM Power Management

Main Switch Override Mechanism

Wake-On-Ring (WOR)

Wake-On-LAN (WOL)

Keyboard Wakeup from Soft-Off

Power-on mode control for AC power loss recovery

Internal/External modem remote ring-on

PC Health Monitoring:Chassis intrusion detection (through LDCM);Chassis intrusion header; SDDC


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
