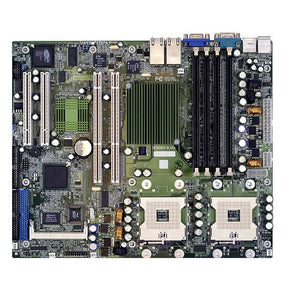

Supermicro X5DPA-GG E7501 Dual XEON Socket-604 533FSB Video 2GB-LAN ATX Motherboard : OEM BARE
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The SUPER X5DPA-GG supports dual Intel Xeon processors at up to 3.06 GHz at a 533/400 MHz front side bus. This motherboard is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
| Key Features | |
| Product Type | Motherboard |
| Form Factor | ATX |
| Width | 30.5 cm |
| Depth | 25.4 cm |
| CPU Type | Xeon |
| CPU Socket Type | Socket 604 |
| Chipset Type | Intel E7501 |
| Data Bus Speed | 533 MHz |
| BIOS Type | AMI |
| Storage Controllers | ATA-100 |
| Processor | |
| Installed Qty (Max Supported) | 2 |
| Memory | |
| Supported RAM Technology | DDR SDRAM |
| Supported RAM Integrity Check | ECC |
| Video | |
| Graphics Controller | ATI RAGE XL |
| Audio | |
| Audio Output Type | None |
| Features | |
| BIOS Features | ACPI 1.0 support, SMBIOS 2.3 support |
| Sleep / Wake Up Features | wake on LAN (WOL), wake on ring (WOR) |
| Hardware Features | Chassis intrusion detection, Watch Dog Timer |
| Hardware Monitoring | CPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, chassis temperature, power supply fan tachometer, system voltage |
| Expansion / Connectivity | |
| Storage Interfaces | ATA-100 - connector(s): 2 x 40pin IDC |
| Interfaces | 1 x display / video - VGA - 15 pin HD D-Sub (HD-15), 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style), 1 x mouse - generic - 6 pin mini-DIN (PS/2 style), 1 x storage - floppy interface - 34 pin IDC, 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45, 2 x serial - RS-232 - 9 pin D-Sub (DB-9), 3 x USB - 4 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x floppy cable ¦ 1 x IDE cable ¦ 1 x serial cable ¦ 1 x USB cable |
| Software Included | Drivers & utilities, Intel LANDesk Client Manager |
| Compliant Standards | ACPI, APM 1.2, PC 99 |
