Description
Overview

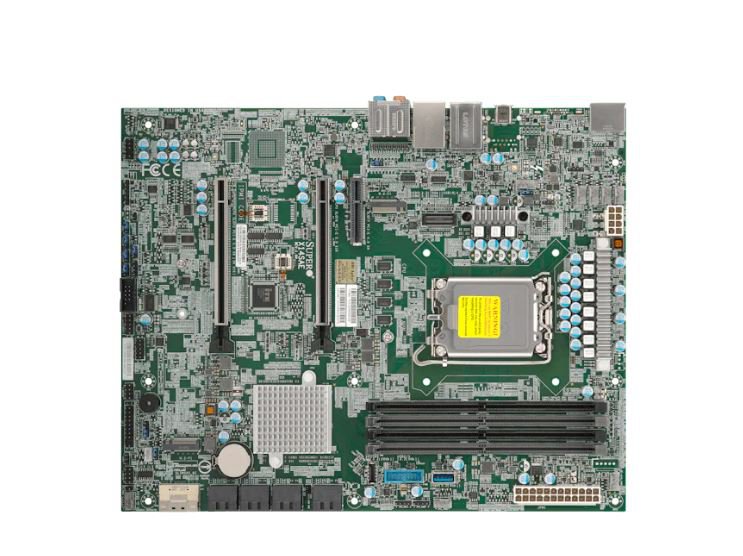

The Supermicro X14SAE MBD-X14SAE-B W880 motherboard supports Intel Core Ultra 9/7/5 series processors on the LGA1851 socket, with DDR5-5600MHz memory (up to 128GB) and PCIe 5.0 for fast data transfer and future-proof expansion.
Specifications
Model Number: X14SAE MBD-X14SAE-B
Brand: Supermicro
Alt Part Number(s): X14SAE MBD-X14SAE-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: X14SAE MBD-X14SAE-B
Form Factor: ATX
Dimension: 12" x 9.6" (30.5cm x 24.4cm)
CPU: Single Socket V1 (LGA-1851); Intel Core Ultra 9/7/5 Processors
Core Count: Up to 24C
Memory: 4 DIMM Slots; UDIMM sizes: 8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Error Detection: Corrects single-bit errors; Detects double-bit errors (ECC memory)
Chipset: Intel W880
SATA: 8 SATA (6Gbps)
Network Controller: Single LAN with Intel I226LM Ethernet; Single LAN with Intel PHY I219LM LAN controller (for AMT/vPro)
USB: 2 USB 3.2 Gen1 (Header); 3 USB 3.2 Gen2 Type-A (Rear); 1 USB 3.2 Gen2x2 Type-C (Rear); 1 USB 3.2 Gen2x2 (Header); 1 USB 4 Type-C (Rear)
Video: 1 Intel Thunderbolt 4 Type-C (Shared w/ USB4/DP2.1); 1 Display Port; 1 HDMI 2.1 (8K@60Hz)
Serial: 1 COM port (Header)
Audio: ALC 888S HD Audio
TPM: TPM 2.0 onboard
PCIe Configuration: 1 PCIe 4.0 x4 slot; 2 PCIe 5.0 x16 slots; 1 PCIe 4.0 x8 SlimSAS slot
M.2: 1 M.2 PCIe 4.0 x4 (M-key 2280/22110); 1 M.2 PCIe 5.0 x4 (M-key 2280)
BIOS: AMI 32MB UEFI; ACPI 6.5; UEFI 2.9; SMBIOS 3.8+
Software: Supermicro Server Manager (SSM); SuperDoctor 5 (SD5); Super Diagnostics Offline (SDO); SAA (limited support)
Voltage Monitoring: +1.8V CPU, +12V, +3.3V, +5V, 1.05 (PCH), 3.3V standby; CPU, Memory, PCH, System temperatures; Triple Cooling Zones; UID; VBAT
Fans: 7x 4-pin fan headers (up to 7 fans); 5 fans with tachometer; Fan speed control; Overheat LED
Other Features: 8-pin 12V DC power connector; ACPI power management; ATX power connector; Chassis intrusion header; Power-on recovery control; CPU thermal trip support; RoHS compliant; Voltage and frequency overclocking; Wake on LAN (WOL)
