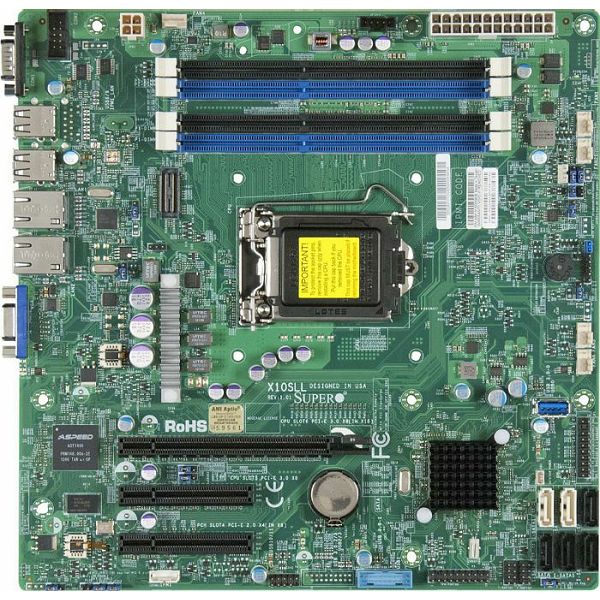

Supermicro X10SLL-F-B Xeon E3-1200 v3 LGA-1150 MicroATX Server Motherboard

Specifications

Model Number:  X10SLL-F-B

Brand:  Supermicro

Alt Part Number(s):  X10SLL-F-B

Product Type:  Server Motherboard

Note:  New Board With Backplate Only.



Technical Description

Brand:  Supermicro

Model:  X10SLL-F-B

CPU Socket Type:  LGA 1150

CPU Type:  Intel Xeon processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron

Chipsets:  Intel C222

Number of DDR3 Slots:  4 x 240pin

DDR3 Standard:  DDR3 1600

Maximum Memory Supported:  32GB

ECC Supported:  Yes

PCI Express x8:  1x PCI-E 3.0 x8 (in x16) slot, 1x PCI-E 3.0 x8 slot

PCI Express x4:  1x PCI-E 2.0 x4 (in x8) slot

SATA:  4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s

SATA RAID:  SATA3 (6Gbps) w/ RAID 0, 1 / SATA2 (3Gbps) w/ RAID 0, 1, 5, 10

Onboard Video Chipset:  Aspeed AST2400

LAN Chipset:  Intel I217-LM

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Intel I210-AT

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

Video Ports:  D-Sub

Form Factor:  MicroATX

Dimensions (W x L):  9.6" x 9.6"



Features

Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors

Intel® C222 Express PCH

Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets

Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT)

2x SATA (6Gbps), 4x SATA (3Gbps)

1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots

2x USB 3.0 (1 Type-A + 1 via header) 6x USB 2.0 (4 rear + 2 via header)

Integrated IPMI 2.0 with KVM and Dedicated LAN

SATA DOM power connector support

VGA D-sub connector, TPM header
