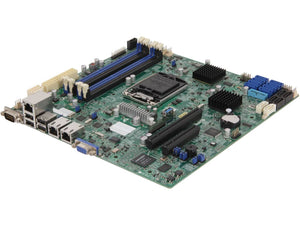

"Image may differ from actual product"
Roll over image to zoom in Click on image to zoom
This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.
How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!
Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.
Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!
Realtime Inventory: Live inventory updates are not available for this product.
Description
Specifications
Model Number: X10SL7-F
Brand: Supermicro
Alt Part Number(s): X10SL7-F
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: X10SL7-F
Chipset Type: Intel C222
Processor Socket: LGA1150 Socket
RAM Technology: DDR3 SDRAM
RAM Speed: 1066 MHz, 1333 MHz, 1600 MHz
Interface: Serial ATA-300, Serial ATA-600, Serial Attached SCSI 2
Connector(s): 2 x 7pin Serial ATA, 4 x 7pin Serial ATA, 8
Expansion Slots: 1 x CPU , 4 x DIMM 240-pin (1.5 V/ 1.35 V) , 1 x PCIe 3.0 x16 (x8 mode)
Internal Interfaces: 2 x USB 2.0 – header , 1 x serial – header , 1 x USB 3.0 - Type A
Compatible Processors: Pentium, Celeron, Core i3, Xeon E3-1200 series
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller: Intel I210-AT
Network: 2 x Gigabit Ethernet
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: micro ATX
Width: 9.6 in
Depth: 9.6 in
Features
Single socket H3 (LGA 1150) supports Intel Xeon E3-1200 v3 / v4, 4th gen. Core i3, Pentium, Celeron processors
Intel C222 Express PCH
Up to 32GB DDR3 ECC 1600 MHz UDIMMs in 4 sockets
Dual Gigabit Ethernet LAN ports via Intel i210AT
2 x SATA (6 Gbps), 4 x SATA (3 Gbps)
8 x SAS2 (6 Gbps) via LSI 2308
Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 2.0 x4 (in x8)
2 x USB 3.0 (1 Type-A + 1 via header), 6 x USB 2.0 (4 rear + 2 via header)
Integrated IPMI 2.0 with KVM and Dedicated LAN
SATA DOM power connector support
VGA D-sub connector, TPM header
