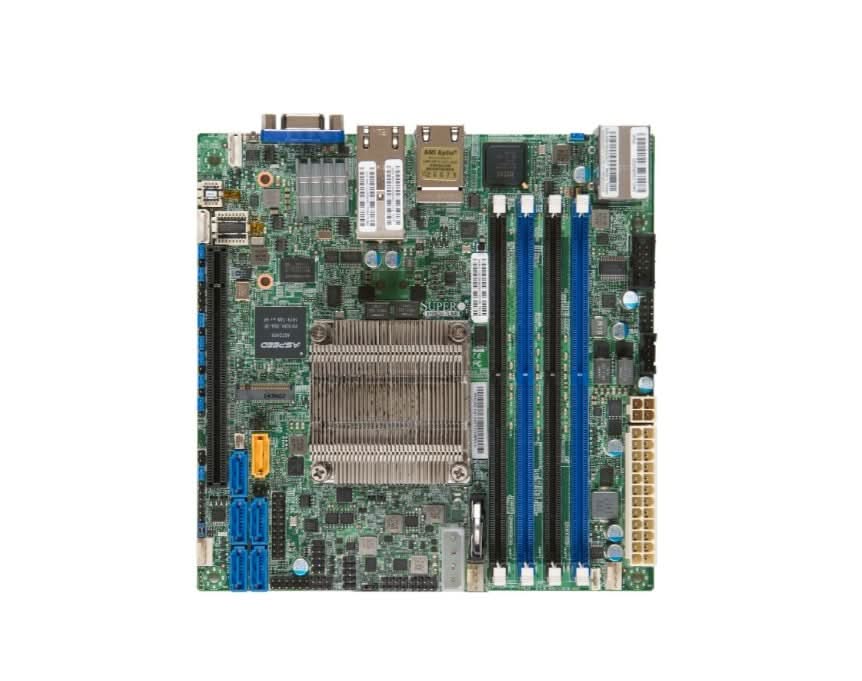

Supermicro X10SDV-12C-TLN4F+-O Intel Xeon 2.1GHz 12-Core Mini-ITX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro X10SDV-12C-TLN4F+-O is a Mini-ITX server motherboard with an integrated Intel Xeon D-1557 12-Core processor and dual 10G SFP+ LAN ports, designed for compact yet powerful networking and edge computing solutions. The "+" in the part number indicates SFP+ connectivity rather than the 10Gbase-T copper ports found on the non-plus version.
Specifications
Model Number: X10SDV-12C-TLN4F+-O
Brand: Supermicro
Alt Part Number(s): X10SDV-12C-TLN4F+-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: X10SDV-12C-TLN4F+-O
Processor Type: Intel Xeon
Processor Model: D-1557
Processor Clock Speed: 2.1GHz
Processor Turbo Speed: 2.7GHz
Processor Core: 12-Cores/24Threads
Processor Socket: FCBGA‑1667
Storage Interfaces: SATA 6Gb/s
LAN Port: 2 10G SFP+,2 1GbE RJ45, 1 Dedicated IPMI RJ45 LAN port
USB Port: 2 USB 3.0 ports (rear), 2 USB 2.0 ports
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 128GB
Memory Speed: DDR4‑1600 / 1866 / 2133 MHz
Memory Type: DDR4
Memory Slots: 4
Expansion Slots: 1 × PCIe 3.0 ×16
RAID: RAID 0/1/5/10
Error Detection: ECC
Input Power: 12 V DC
Power Capacity: 45W
Form Factor: Mini-ITX
*
