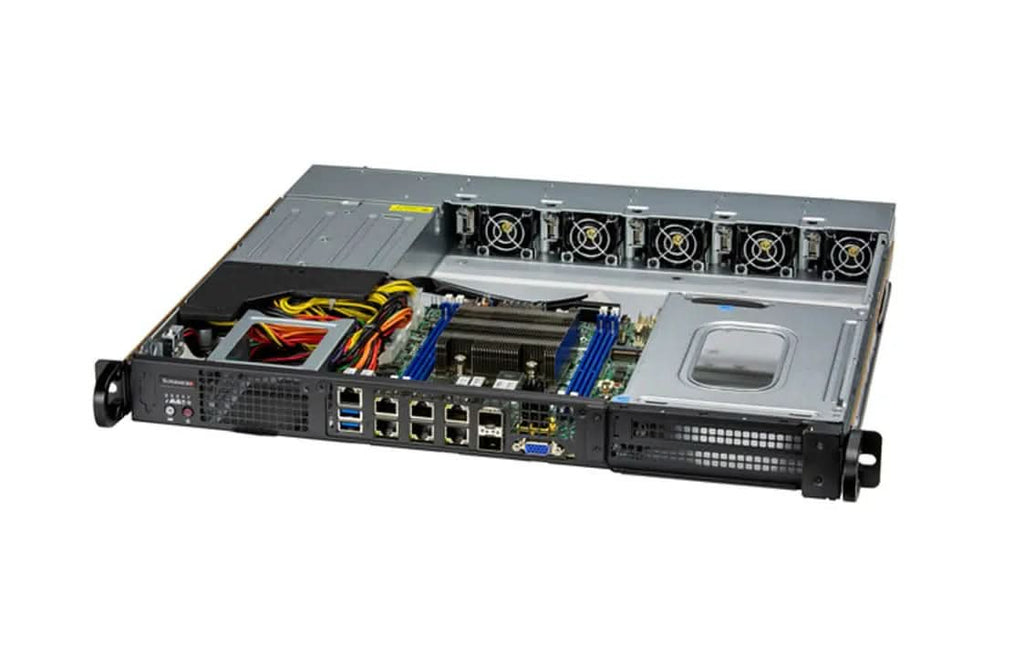

Supermicro SYS-110D-20C-FRDN8TP 1U Intel Xeon 20-Core 256GB Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The Supermicro SYS-110D-20C-FRDN8TP is a 1U rackmount IoT and embedded server featuring an integrated Intel Xeon D-2796NT 20-Core processor and extensive, front-access networking I/O, designed for firewall, uCPE, and telecom applications.
Specifications
Model Number: SYS-110D-20C-FRDN8TP
Brand: Supermicro
Alt Part Number(s): SYS-110D-20C-FRDN8TP
Product Type: Server
Technical Description
Brand: Supermicro
Model Number:
Chassis: CSE-515M-R000NP2
Processor Type: Intel Xeon
Processor Model: D-2796NT
Processor Clock Speed: 2.0GHz
Processor Core: 20-Cores/40 Threads
Processor Socket: FCBGA-2579
Motherboard: Super X12SDV-20C-SPT8F
Storage Interfaces: SATA 6Gb/s
Network Interfaces: 4 x 1GbERJ45,2 x 10GbE RJ45,2 x 25GbE SFP28
Rear I/O Ports: 2 x USB 3.0 ports, 1 x VGA port, 1 x dedicated IPMI LAN port
Storage Bays: 2 x 2.5" SATA/NVMe
Memory Capacity: 256GB
Memory Supported: 512GB
Memory Type: DDR4
Memory Slots: 4
Expansion Slots: 1 x PCI-E 3.0 x16
Error Detection: ECC
Cooling: 5 x 40x56mm hot-swap counter-rotation PWM fans
Power TDP: 120W
Power Supply: 600 W –48 VDC
Form Factor: 1U Rackmount
*
