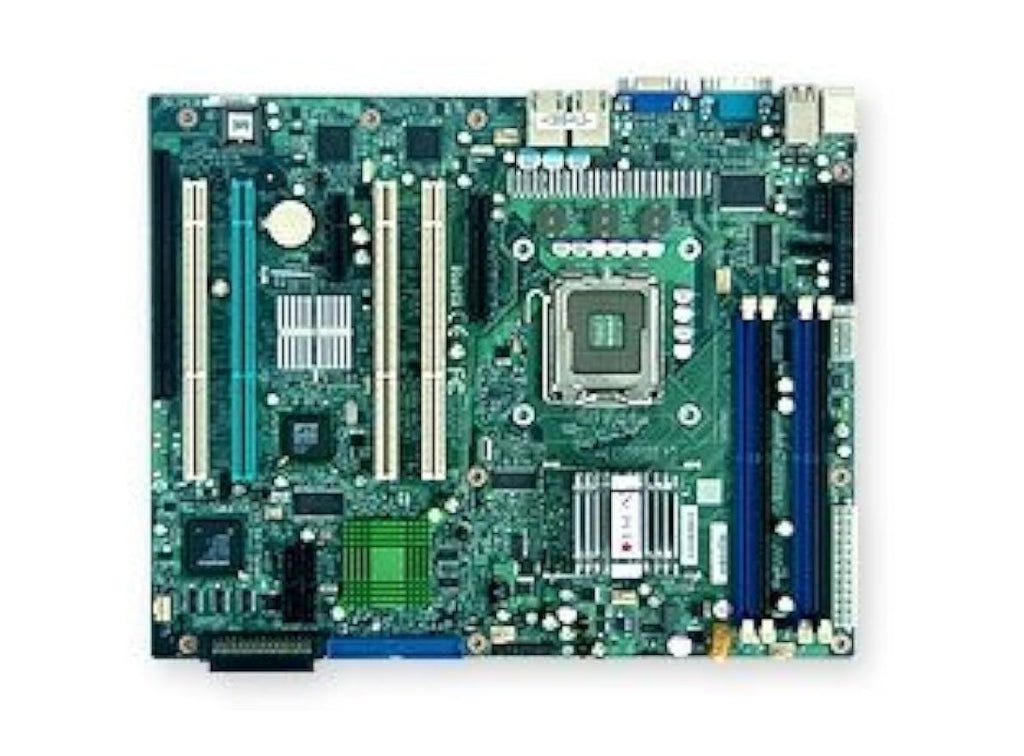

Supermicro PDSM4+ Intel Xeon Socket T LGA-775 DDR2 16MB ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Supermicro PDSM4+ is an entry-level server motherboard built on the Intel 3010 (Mukilteo-2P) chipset. It is designed for the LGA 775 socket and is intended for professional use in cost-effective server platforms or industrial applications
No accessories included
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: E7230
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Pentium D
- Front Side Bus: 533 MHz
- 64-bit Processing: Yes
Memory
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-400/PC2-3200
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Ultra320 SCSI
- Controller Type: Floppy Controller
- RAID Supported: Yes
- RAID Levels: 1+0
- RAID Levels: 1
- RAID Levels: 0
- RAID Levels: 5
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 1
- Total Number of PCI Express Slots: 1
- Number of PCI Express x4 Slots: 1
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 4
- Number of SCSI Interfaces: 1
- Onboard LEDs Header: Yes
Physical Characteristics
- Form Factor: ATX
- Width: 12.0"
- Depth: 9.6"
Miscellaneous
-
Additional Information:
Chipset:
- Intel E7230
- ICH7R
- PXH
- Intel 82573V
-
BIOS Features:
- 8Mb Flash EEPROM with Phoenix BIOS
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- Hardware BIOS Virus protection
- SMBIOS 2.3
- USB Keyboard support
- PCI-X - 1.0
-
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, Chipset Voltage, Memory Voltage, +1.8V, +3.3V, +5V, +12V, and 12V
- CPU 4-phase-switching voltage regulator
- Status monitor for fan speed & System OH/Fan Fail LED/Control
- Pulse Width Modulation Fan Control & Low noise fan speed control
- Environmental temperature monitoring via BIOS, PWR-Up from AC PWR loss
- SuperDoctor III, NMI
- System Resource alert via SuperDoctor III
- Monitors for CPU Cores (+1.8V, +3.3V, +5, ±12V, +5V Standby)
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio settings (via BIOS)
- Total of five 4-pin fan headers
- 5x fans with tachometer monitoring
- Status monitor with firmware / software speed control
- Status monitor for on/off control
- Support 3-pin fans (with speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connector
- Monitoring for CPU and chassis environment
- CPU Thermal Trip support
- Thermal Monitor (TM2) Support
- CPU / System Overheat LED
- +5V standby alert LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
-
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
