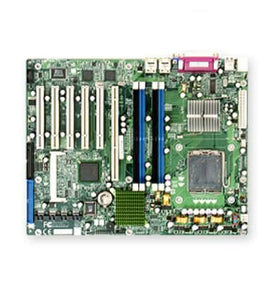

Supermicro P8SCT Intel E7221 Socket-LGA775 Serial ATA-150 ATX Motherboard

Specifications

Model Number:  P8SCT

Brand:  Supermicro

Alt Part Number(s):  P8SCT

Product Type:  Motherboard



Technical Description

Brand:  Supermicro

Model:  P8SCT

Chipset Type:  Intel E7221 / Intel ICH6R

Processor Socket:  LGA775 Socket

Max Bus Speed:  800 MHz

Additional Connectors (Optional):  4 x USB 2.0

Power Connectors:  4-pin ATX12V connector

Interface:  ATA-100, Serial ATA-150

Connector(s):  1 x 40pin IDC, 4 x 7pin Serial ATA

Compatible Processors:  Pentium 4, Pentium 4 Extreme Edition, Celeron D

Expansion Slots:  4 x DIMM 240-pin (1.8 V) , 1 x CPU ,  1 x PCI-X / 133 MHz (3.3 V) , 5 x PCI (5 V)

Data Link Protocol:  Ethernet, Fast Ethernet, Gigabit Ethernet

RAM Technology:  DDR2 SDRAM

RAM Speed:  400 MHz, 533 MHz

RAM Standard:  PC2-3200, PC2-4300

Network Controller:  Broadcom BCM5721

Network:  2 x Gigabit Ethernet

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  ATX

Width:  12 in

Depth:  9.5 in
