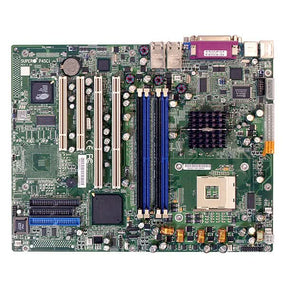

Supermicro P4SCI / P4SCI-B E7210 Socket-478 SATA(Raid) Video LAN ATX BareMotherboard

Specifications

Processor & Chipset

• Chipset Manufacturer:     Intel
• Chipset Model:     E7210
• Total Processor Supported:     1
• Processor Technology:     Hyper-Threading Technology
• Processor Socket:     Socket PGA-478
• Processor Supported:     Pentium 4 (Extreme Edition)
• Processor Supported:     Pentium 4
• Processor Supported:     Celeron
• Front Side Bus:     400 MHz
• Front Side Bus:     533 MHz
• Front Side Bus:     800 MHz

Memory

• Number of Memory Slots:     4
• Maximum Memory:     4 GB
• Memory Standard:     DDR266/PC2100
• Memory Standard:     DDR333/PC2700
• Memory Standard:     DDR400/PC3200
• Memory Technology:     DDR SDRAM

I/O Controller

• Controller Type:     Floppy Controller
• Controller Type:     Serial ATA/150
• Controller Type:     Ultra ATA/100 (ATA-6)

Video

• Onboard Video:     On-board Video Chipset
• Graphics Controller Manufacturer:     ATI
• Graphics Controller Model:     Rage-XL
• Graphics Controller Memory:     8 MB

Network & Communication

• Gigabit Ethernet:     Yes

I/O Expansions

• Number of Total Expansion Slots:     6
• Number of PCI Slots:     2
• Number of PCI-X Slots:     4

Interfaces/Ports

• Total Number of USB Ports:     2
• Number of USB 2.0 Ports:     2
• Parallel Port:     Yes
• Serial Port:     Yes
• VGA:     Yes
• Network (RJ-45):     Yes

Onboard Interfaces

• Number of IDE Interfaces:     2
• Number of SATA Interfaces:     2
• Total Number of Onboard USB Ports:     1
• Onboard LEDs Header:     Yes

Physical Characteristics

• Width:     12.0"
• Depth:     9.5"

•

• Additional Information:

  Chipsets:

• Intel E7210 (Canterwood ES)
• MCH
• 6300ESB
• FWH

• BIOS Features:

• 8Mb Flash EEPROM with AwardBIOS Plug and Play (PnP)
• APM 1.2
• DMI 2.3 support
• PCI 2.3
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection
• USB Keyboard support

•
