Description
Specifications

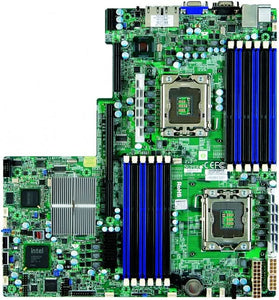

Mfr Part Number: MBD-X8DTU-F-0
Brand: Supermicro
Model Number: MBD-X8DTU-F-0
Type: Motherboard
Technical Description
Brand: Supermicro
Model: MBD-X8DTU-F-0
CPU Socket Type: Dual LGA 1366
CPU Type: Dual Intel Xeon 5600/5500 series
QPI: Up to 6.4 GT/s
Chipsets: Intel 5520
Number of DDR3 Slots: 12 x 240pin
DDR3 Standard: DDR3 1333/1066/800
Max Memory Supported: 192GB
ECC Supported: Yes
Registered: Yes
PCI Express 2.0: x16
Left Side: 1 (x16) PCI-E 2.0 + 1 UIO or 1 (x16) PCI-E 2.0
SATA: 6 x SATA 3.0Gb/s
SATA RAID: RAID 0, 1, 5, 10 support (Windows), RAID 0, 1, 10 support (Linux)
Onboard Video Chipset: Matrox G200eW
LAN Chipset: Intel 82576
LAN Speed: 10/100/1000Mbps
Max LAN Speed: Dual 10/100/1000Mbps
PS/2 Ports: 2
COM Ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 2 x USB 2.0
Onboard USB: 2x USB on-board, 4x USB internal headers
Form Factor: Proprietary
Dimensions: 12.075" x 13.05"
Features
integrated IPMI 2.0 with Dedicated LAN
CPU: Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor 5600 Series (Westmere)
Intel Xeon Processor 5500 Series (Nehalem-EP)
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
