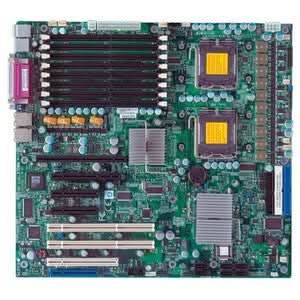

Supermicro MBD-X7DBN-B / X7DBN Intel 5000P Socket-771 Quad Core XEON E-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Built upon the functionality and the capability of the 5000P Chipset, the X7DBN motherboard provides the performance and feature set required for dual processor based servers with configuration options optimized for communications, presentation, storage, computation or database applications.
- Chipset Manufacturer: Intel
- Chipset Model: 5000P
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket J LGA-771
- Processor Supported: Xeon Quad-core
- Processor Supported: Xeon Dual-Core
- Front Side Bus: 1066 MHz
- Front Side Bus: 667 MHz
- Front Side Bus: 1333 MHz
- 64-bit Processing: Yes
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 32 GB
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Floppy Controller
- RAID Supported: Yes
- RAID Levels: 1+0
- RAID Levels: 1
- RAID Levels: 0
- RAID Levels: 5
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: ES1000
- Graphics Controller Memory: 16 MB
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 7
- Number of PCI Slots: 1
- Number of PCI-X Slots: 2
- Total Number of PCI Express Slots: 3
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x8 Slots: 2
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 3
- Onboard LEDs Header: Yes
Onboard Interfaces
- Form Factor: Extended ATX
- Width: 12.0"
- Depth: 13.0"
Physical Characteristics
-
Additional Information:
BIOS Features:
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.13
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Miscellaneous
