Description
Overview

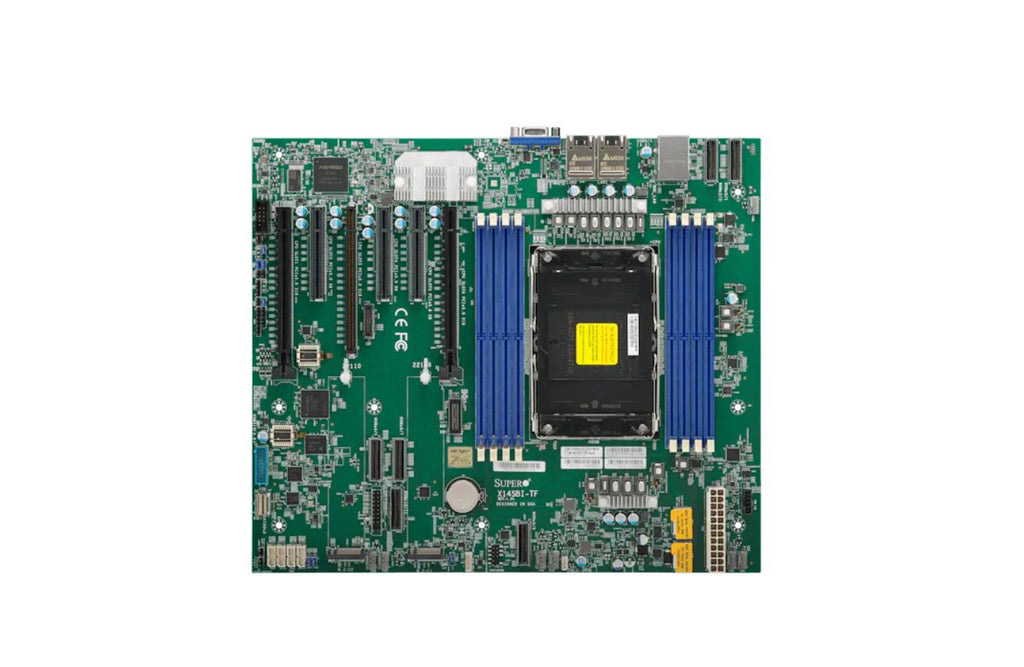

The Supermicro MBD-X14SBI-TF-B server motherboard supports Intel Xeon 6700-series processors with efficient E-cores on a single LGA-4710 (Socket E2) socket. It is designed to handle high-performance workloads with CPU TDP support up to 350W.
Specifications
Model Number: MBD-X14SBI-TF-B
Brand: Supermicro
Alt Part Number(s): MBD-X14SBI-TF-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: MBD-X14SBI-TF-B
Form Factor: ATX-Compatible (Extended Dimensions)
Dimension: 12.3" x 10.5" (31.24cm x 26.67cm)
CPU: Single Socket E2 (LGA-4710); Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores; Specific CPUs: Intel Xeon 6781P, 6761P, 6741P, 6731P, 6521P
Core Count: Up to 144C
Note: Supports up to 350W TDP CPUs
Memory: Slot Count: 8 DIMM Slots; Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
Memory Voltage: 1.1V
Error Detection: Corrects single-bit errors; Detects double-bit errors (using ECC memory)
SATA: 4 SATA (6Gbps) via ASMedia ASM1164; via SlimSAS
IPMI: ASPEED AST2600 BMC
Network Controller: Dual LAN with 10GBase-T with Intel X550
LAN: 2 RJ45 10 GbE LAN port(s); 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB: 2 USB 3.2 Gen1 port(s) (Header); 2 USB 3.2 Gen1 port(s) (Rear)
Video: 1 VGA D-Sub Connector port(s)
Serial: 1 COM port(s) (header)
TPM: 1 TPM header
PCI-Express (PCIe) Configuration: 3 PCIe 5.0 x8 slots, 3 PCIe 5.0 x16 slots, 6 PCIe 5.0 x8 via MCIO Connector slots (PCIe5.0 Slot 6 and JNVME3-6 enabled with specific CPU installed)
M2: 2 M.2 PCIe 5.0 x2 slots (M-key 22110)
BIOS Type: AMI 64MB UEFI
BIOS Features: ACPI 6.5; SMBIOS 3.7 or later; UEFI 2.9
Software: SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software
Security: Hardware: Trusted Platform Module (TPM) 2.0
Voltage: +12V, +3.3V, +5V, +5V standby, 7-fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
LED: CPU/system overheat LED; UID/remote UID LED
Temperature: CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support
FAN: 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication
Other Features: ACPI power management, Chassis intrusion detection, Control of power-on for recovery from AC power loss, M.2 NGFF connector, UID, WOL
