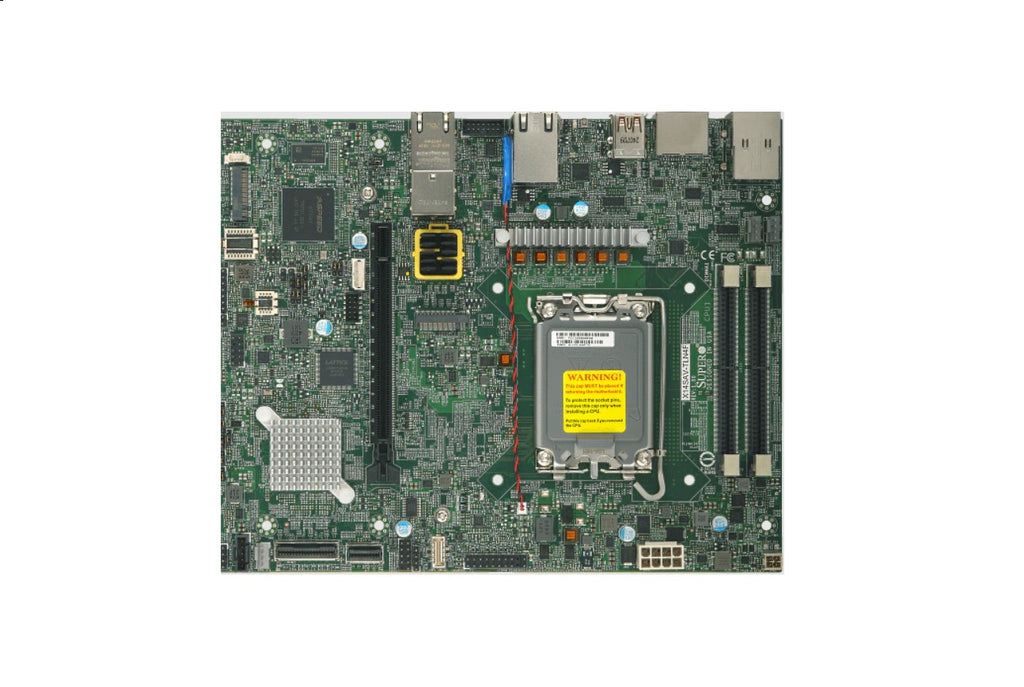

Supermicro MBD-X14SAV-TLN4F-B Flex ATX DDR5 6400MT/s Dual 10GbE Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Supermicro MBD-X14SAV-TLN4F-B Flex ATX motherboard, featuring a single Socket V1 LGA-1851 for Intel Core Ultra 9, 7, and 5 Series 2 processors with up to 24 cores and 125W TDP, 2 DIMM slots supporting up to 96GB 6400MT/s ECC or non-ECC DDR5 SO-DIMM, dual Intel I226LM 1GbE and dual Intel X550 10GbE LAN, plus HDMI 2.1 and DisplayPort. It also includes 1 PCIe 5.0 x16 slot, 1 PCIe 4.0 x8 via MCIO, 1 M.2 PCIe 5.0 x4 slot, 4 rear USB 3.2 Gen2 Type-A ports, dedicated 1GbE IPMI, TPM 2.0, AMI 32MB UEFI, and support for 12V DC or ATX power.
Specifications
Model Number: MBD-X14SAV-TLN4F-B
Brand: Supermicro
Alt Part Number(s):MBD-X14SAV-TLN4F-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: MBD-X14SAV-TLN4F-B
Form Factor: Flex ATX
Dimension: 9" x 7.25" (22.86cm x 18.42cm)
CPU: Single Socket V1 (LGA-1851); Intel® Core® Ultra 9/7/5 (Series 2) Processors
Core Count: Up to 24C
TDP: Up to 125W
Memory: 2 DIMM Slots; Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM; CSODIMM support up to 6400MT/s with Core™ Ultra 9/7
Memory Voltage: 1.1V
Error Detection: Corrects single-bit errors; Detects double-bit errors using ECC memory
Network Controller: Dual LAN with Intel® I226LM Ethernet Controller; Dual LAN with Intel® X550 10GBase-T Ethernet Controller
LAN: 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC)
USB: 2 USB 2 port(s) (Header); 4 USB 3.2 Gen2 Type-A port(s) (Rear); 2 USB 3.2 Gen2 port(s) (Header)
Video: 1 HDMI 2.1 port(s); 1 DisplayPort port(s); 1 Header port(s)
Serial: 1 COM port(s) (Header)
TPM: 1 TPM Header & Chip
Others: 2 MCIO port(s)
PCI-Express (PCIe) Configuration: 1 PCIe 5.0 x16 slot; 1 PCIe 4.0 x8 via MCIO Connector slot
M2: 1 M.2 PCIe 5.0 x4 slot (M-key 2280)
BIOS Type: AMI 32MB UEFI
BIOS Features: ACPI 6.5; SMBIOS 3.7 or later; UEFI 2.9
Security: Hardware: Trusted Platform Module (TPM) 2.0
PC Health Monitoring: Voltage: +1.8V, +12V, +3.3V, +5V, chipset voltage, CPU temperature, memory temperature, UID, VBAT; 3-fan status; 3 fans with tachometer monitoring; BMC/IPMI Heartbeat LED
LED: Power LED
Temperature: CPU thermal trip support; Monitoring for CPU and chassis environment
FAN: 3x 4-pin fan headers (up to 3 fans)
Other Features: 12V DC or ATX Power Source; ACPI power management; ATX power connector; Chassis intrusion detection; M.2 NGFF connector; RoHS
