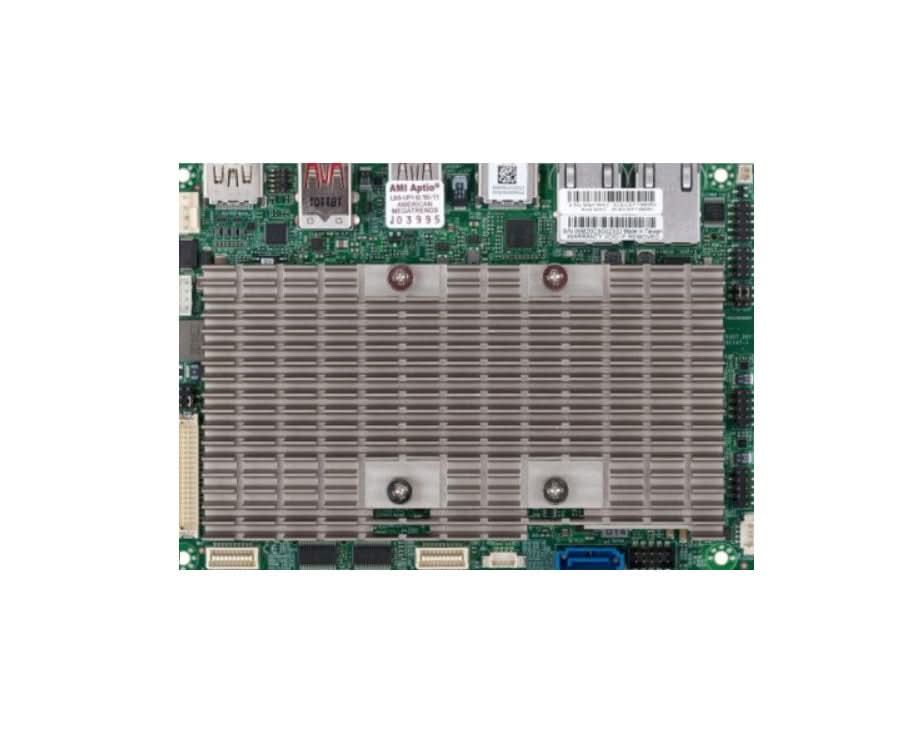

Supermicro MBD-X12STN-C-O Intel Celeron 6305E 3.5″ SBC Computer Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The Supermicro MBD-X12STN-C-O is a 3.5" Single Board Computer (SBC) designed for embedded and IoT applications. It is powered by an integrated Intel Celeron 6305E processor and supports high-speed connectivity via dual 2.5GbE LAN ports.
Specifications
Model Number: MBD-X12STN-C-O
Brand: Supermicro
Alt Part Number(s): MBD-X12STN-C-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X12STN-C-O
Processor Type: Intel Celeron
Processor Model: 6305E
Processor Generation: 3rd Gen
Processor Core: 2-Cores/2 threads
Processor Speed: 1.8GHz
Processor Cache: 4 MB
Processor Socket: BGA-1449
Serial Ports: 4 COM headers supporting RS-232, RS-422, and RS-485
LAN Ports:2 × 2.5 GbE RJ45 ports via Intel I225-IT
USB: 4 USB 3.x + 4 USB 2.0
Graphics: Intel UHD Graphics
Memory Supported: 64GB
Memory Type: DDR4
Memory Slots: 2 DIMM
Error Detection: NON-ECC
Fan Headers: 6 × 4-pin PWM fan
Input Power: 12–24 V DC
TDP: 15W
Form Factor: 3.5″ SBC
*
