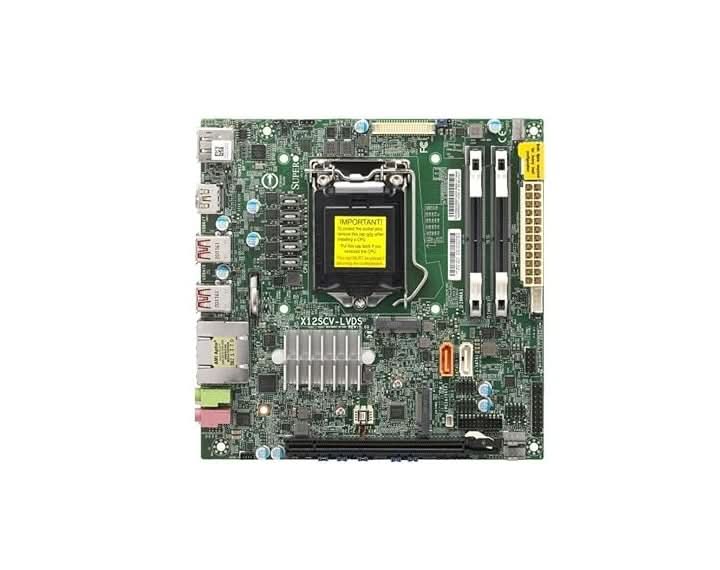

Supermicro MBD-X12SCV-LVDS-O W-1200 Intel Xeon Mini-ITX Desktop Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X12SCV-LVDS-O is a Mini-ITX motherboard based on the Intel W480E chipset, designed for embedded applications requiring multiple independent displays. It supports 11th and 10th Gen Intel Core and Xeon W-1200 series processors with a TDP up to 65W
Specifications
Model Number: MBD-X12SCV-LVDS-O
Brand: Supermicro
Alt Part Number(s): MBD-X12SCV-LVDS-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X12SCV-LVDS-O
Series: W-1200
Processor Type: Intel Xeon
Processor Socket: LGA‑1200
Processor Cache: 2MB
Processor Generation: 11th/10th Gen
Chipset Type: Intel W480E
Storage Interfaces: 2 SATA3 (6Gbps) ports
Network: Dual LAN with Intel PHY I219LM and Intel I210-AT controllers
USB: 4 USB 3.2 Gen 2 ports (rear) and 4 USB 2.0 ports
Audio: Realtek ALC888S
Graphics: Intel UHD Graphics
Memory Supported: 64GB
Memory Type: DDR4
Memory Slots: 2 SO-DIMM
Expansion Slots: 1 × PCIe 3.0 x16
TDP: 65W
Power Input: +12V DC
Form Factor: Mini-ITX
*
