Supermicro MBD-X11SSN-L-WOHS-B Intel Core i3‑7100U 3.5-Inch SBC Desktop Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview

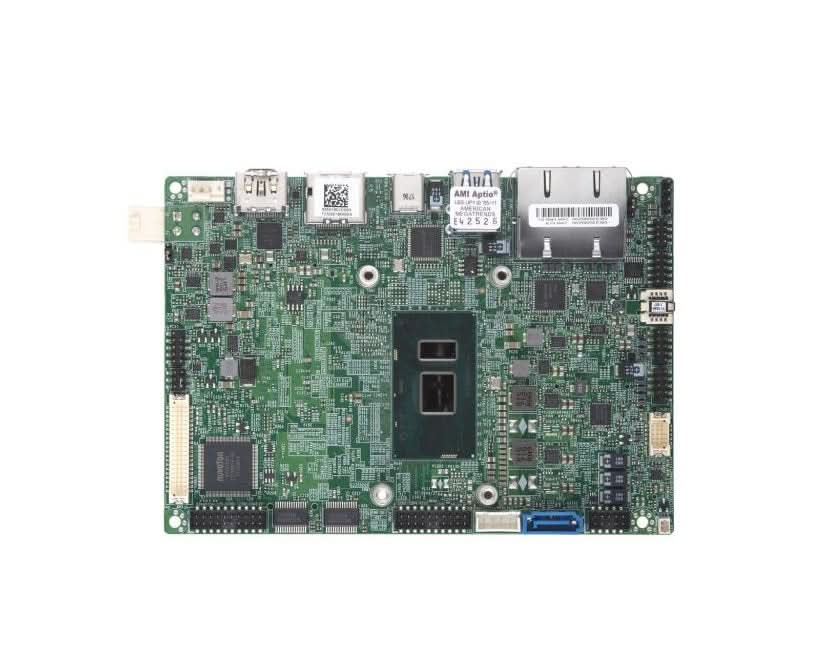

The Supermicro MBD-X11SSN-L-WOHS-B is a 3.5" Single Board Computer (SBC) designed for embedded and IoT applications, featuring an integrated 7th Gen Intel Core i3 processor. The "WOHS" suffix indicates the unit is shipped without a heatsink, and the "-B" denotes a bulk pack for system integrators.
Specifications
Model Number: MBD-X11SSN-L-WOHS-B
Brand: Supermicro
Alt Part Number(s): MBD-X11SSN-L-WOHS-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SSN-L-WOHS-B
Processor Type: Intel Core i3‑7100U
Processor Core: 2-Cores / 4 threads
Processor Cache: 3MB
Processor Socket: FCBGA‑1356
Processor Generation: 7th Gen
Storage Interfaces: 1 × SATA3 (6 Gb/s)
Network: Dual (GbE) LAN ports via Intel PHY i219LM and i210IT
Display Output: 3 independent displays via 1x HDMI 2.0, 1x DisplayPort,1x 48-bit LVDS
Memory Supported: 32GB
Memory Type: DDR4
Memory Slots: 2SO‑DIMM
Expansion Slots: 1x Full-size Mini-PCIe slot
Error Detection: Non‑ECC
TDP: Up to 15 W
Fan Header: 1 × 4‑pin
Power Input:12V DC
Form Factor: 3.5" SBC
*
