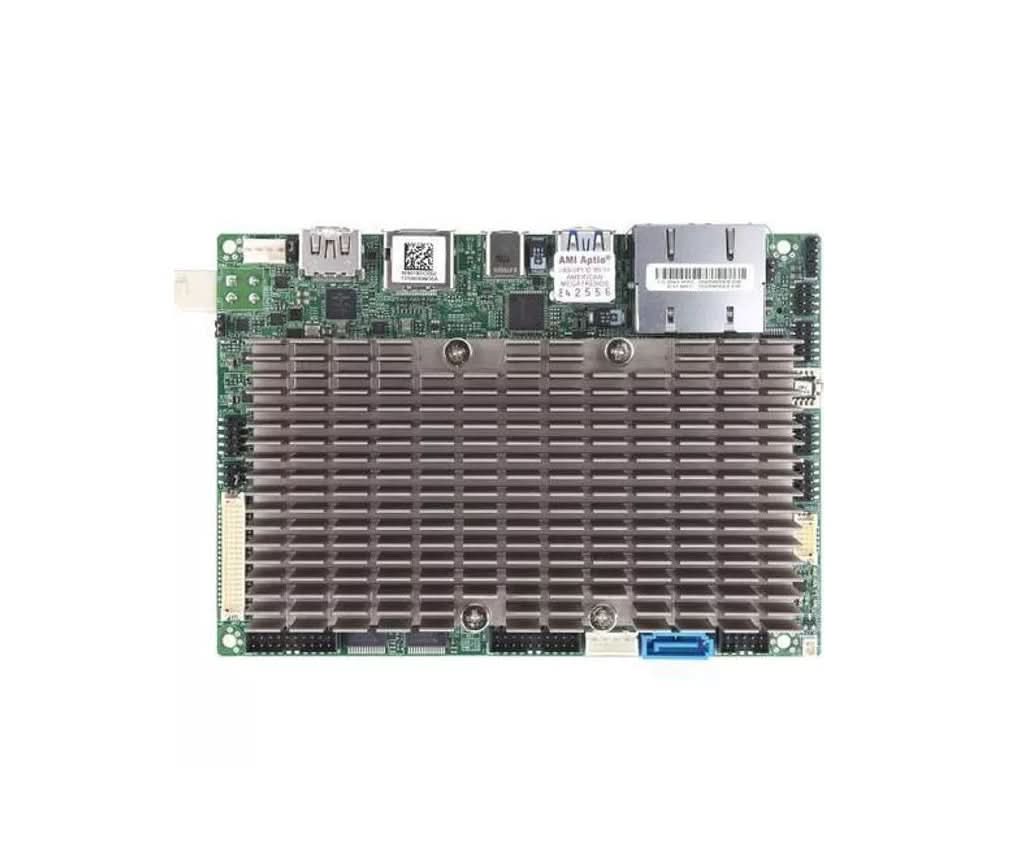

Supermicro MBD-X11SSN-H-O Intel Core i7 2-Core 3.5" SBC Computer Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SSN-H-O is a 3.5" Single Board Computer (SBC) featuring an integrated Intel Core i7-7600U processor. This retail-packaged (-O) board is designed for energy-efficient, long-life applications such as industrial automation, compact edge systems, and IoT gateways.
Specifications
Model Number: MBD-X11SSN-H-O
Brand: Supermicro
Alt Part Number(s): MBD-X11SSN-H-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SSN-H-O
Processor Type: Intel Core i7
Processor Model: 7600U
Processor Speed: 2.8GHz
Processor Core: 2-Cores/4 Threads
Storage Interfaces: 1x SATA 3.0 (6Gbps) port, 1x M.2 B-Key (2280)
Network: Dual Gigabit LAN ports utilizingIntel i219LM and Intel i210IT controllers
USB Ports: 1x USB 3.1 Gen2 Type-C, 2x USB 3.0 (rear), and 4x USB 2.0
Display Interfaces: 1xHDMI 2.0, 1x DisplayPort (DP++), and 1x 48-bit LVDS
Serial Ports: 4x COM ports
Graphics:Intel HD Graphics 620
Memory Supported: 32GB
Memory Speed: 133MHz
Memory Type: DDR4
Memory Slots: 2 SO-DIMM slots
Expansion Slots: 1x full-size Mini-PCIe
Error Detection: Non-ECC
TDP: 15W
Power Input: 12V DC
Form Factor: 3.5" SBC
*
