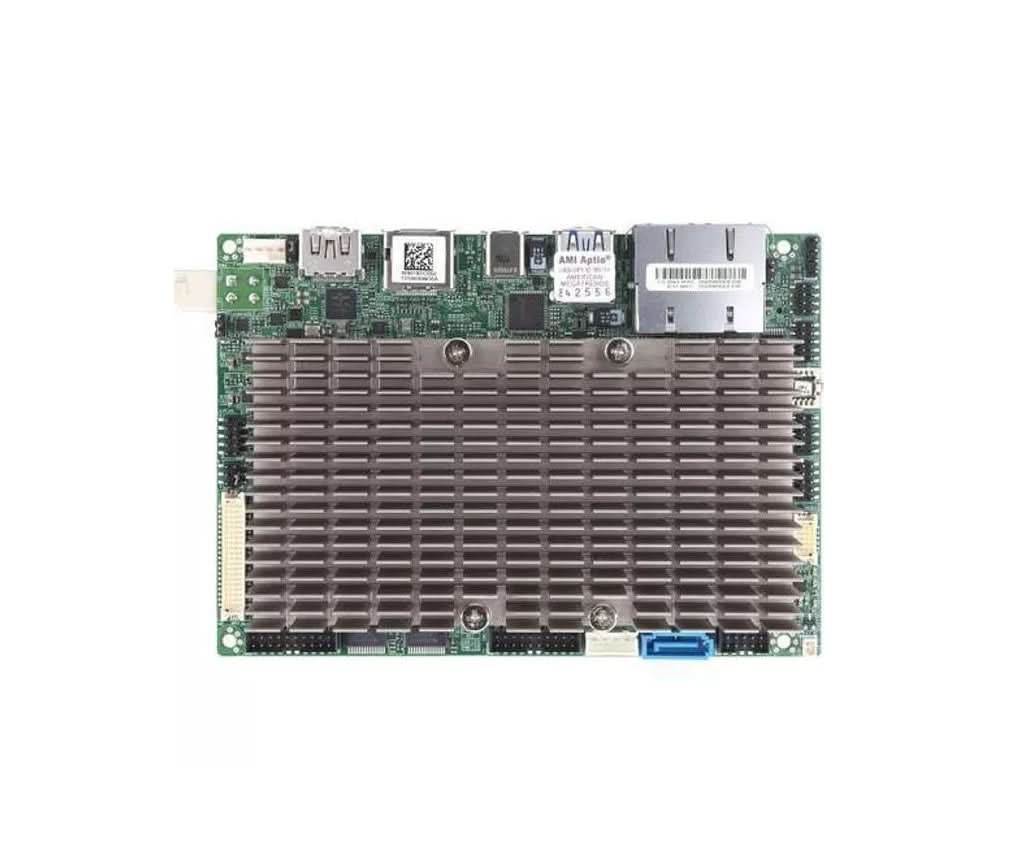

Supermicro MBD-X11SSN-E-O Intel Core i5 2-Core 3.5-Inch SBC Computer Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The Supermicro MBD-X11SSN-E-O is a 3.5" Single Board Computer (SBC) featuring an integrated Intel Core i5-7300U processor. This retail-packaged model is designed for energy-efficient, long-life applications such as industrial automation, IoT gateways, and compact edge systems.
Specifications
Model Number: MBD-X11SSN-E-O
Brand: Supermicro
Alt Part Number(s): MBD-X11SSN-E-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SSN-E-O
Processor Type: Intel Core i5
Processor Model: 7300U
Processor Core: 2-Cores
Processor Cache: 3MB
Processor Socket: FCBGA‑1356
Processor Generation: 7th Gen
Storage Interfaces: 1 × SATA 3.0 (6 Gbps)
Network: Dual Gigabit Ethernet LAN portsIntel i219LM and Intel i210IT controllers
Display Outputs: Includes 1x HDMI 2.0, 1x DisplayPort (DP++), and 1x 48-bit LVDS
USB Ports: Total of 7 ports,1x USB 3.1 Gen 2 Type-C, 2x USB 3.0 (rear), and 4x USB 2.0
Graphics:Intel HD Graphics
Memory Supported: 32GB
Memory Speed: 2133MHz
Memory Type: DDR4
Memory Slots: 2 DIMM slots
Expansion Slots: One full-size Mini-PCIe slot
Error Detection: Non‑ECC
TDP: 15W
Form Factor: 3.5″ SBC
*
