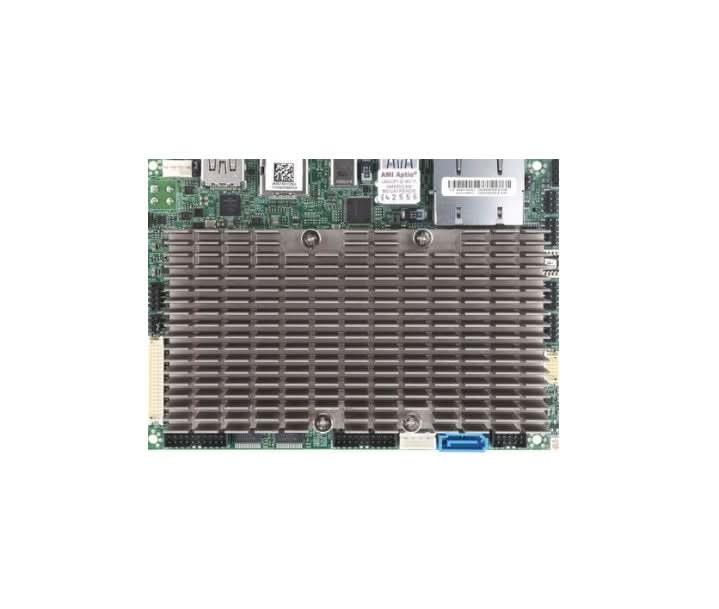

Supermicro MBD-X11SSN-E-B Intel Core i5 2-Core 3.5-Inch SBC Computer Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SSN-E-B is a high-performance 3.5" Single Board Computer (SBC) designed for embedded and industrial applications. It features an integrated 7th Generation Intel Core i5-7300U processor and supports up to 32GB of DDR4 memory.
Specifications
Model Number: MBD-X11SSN-E-B
Brand: Supermicro
Alt Part Number(s): MBD-X11SSN-E-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SSN-E-B
Processor Type: Intel Core i5
Processor Model: 7300U
Processor Core: 2 Cores, 4 threads
Processor Cache: 3MB
Processor Socket: FCBGA1356
Processor Generation: 7th Gen
Storage Interfaces: 1 × SATA-III (6 Gbps)
Network: Dual Gigabit Ethernet LAN ports by Intel i219LM and i210IT controllers
USB: USB 3.0 ports and one USB 3.2 Gen 2 Type-C port
Video Outputs: 1 HDMI 2.0 port, one DisplayPort (DP++), and one 48-bit LVDS port
Graphics: Intel HD Graphics
Memory Supported: 32GB
Memory Speed: 2133MHz
Memory Type: DDR4
Memory Slots: 2 DIMM slots
Expansion Slots: one full-size Mini-PCIe slot
Error Detection: Non-ECC
Cooling: 1 × 4-pin fan header with PWM
TDP: 15W
Power Input: 12V DC
Form Factor: 3.5" SBC
*
