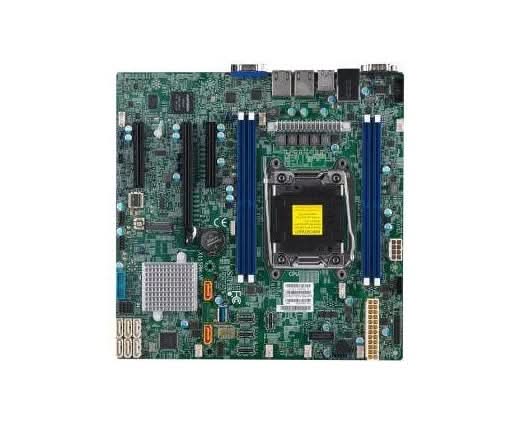

Supermicro MBD-X11SRM-VF-O Intel Xeon 18-Core MicroATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The MBD-X11SRM-VF-O is a microATX server/workstation motherboard engineered for Intel® Xeon® W-2100 and W-2200 processors with robust ECC memory support, multiple expansion slots, abundant storage options, dual Gigabit networking, and remote management (IPMI) — ideal for compact professional workstations or enterprise server applications requiring reliable performance and manageability.
Specifications
Model Number: MBD-X11SRM-VF-O
Brand: Supermicro
Alt Part Number(s): MBD-X11SRM-VF-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SRM-VF-O
Series: W-2100/W-2200
Processor Type: Intel Xeon
Processor Core: 18 cores / 36 threads
Processor Socket: Socket R4 (LGA-2066)
Chipset Type: Intel C422
Storage Interfaces: 8 SATA3 (6Gbps) ports
Network:Dual 1GbE LAN ports using the Intel i210 Gigabit Ethernet controller
USB: 5 USB 3.0 ports (2 rear, 2 via header, 1 Type-A) and 6 USB 2.0 ports
Video Output: 1 VGA port
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2500 BMC
Memory Capacity: 128GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM 4-channel memory
Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x8
Error Detection: ECC
TDP: Up to 140W
Form Factor: MicroATX
*
