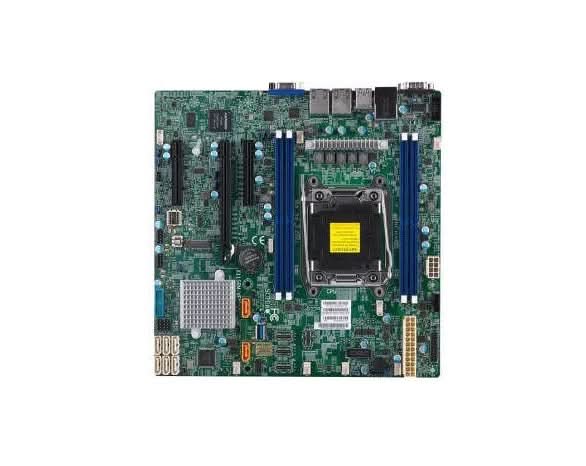

Supermicro MBD-X11SRM-VF-B Intel Xeon 18-Core MicroATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
MBD-X11SRM-VF-B is a microATX server/workstation motherboard built around the Intel® C422 chipset, with single-socket support for Intel® Xeon® W-2100 / W-2200 processors up to 165 W. It supports large ECC memory capacities (up to 512 GB), SATA and NVMe storage, dual GbE LAN, and robust remote management via AST2500 IPMI — making it suitable for compact servers, professional workstations, and enterprise deployments requiring strong I/O and management.
Specifications
Model Number: MBD-X11SRM-VF-B
Brand: Supermicro
Alt Part Number(s): MBD-X11SRM-VF-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SRM-VF-B
Series: W-2100/W-2200
Processor Type: Intel Xeon
Processor Core: 18 cores / 36 threads
Processor Socket: LGA-2066
Chipset Type: Intel C422
Storage Interfaces: 8 SATA3 (6Gbps) ports
Network: Dual1GbE LAN ports via Intel i210 Gigabit Ethernet controllers
USB: 2 USB 3.0 ports, 2 USB 2.0 ports, 2 USB 3.0, 4 USB 2.0,1 USB 3.0 Type-A port
Video: 1 VGA port
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2500 BMC
Memory Capacity: 256GB
Memory Supported: 512GB
Memory Type: DDR4
Memory Slots: 4 DIMM 4-channel memory
Expansion Slots: 1 x PCIe 3.0 x16
Error Detection: ECC
TDP: Up to 165W
Form Factor: MicroATX
*
