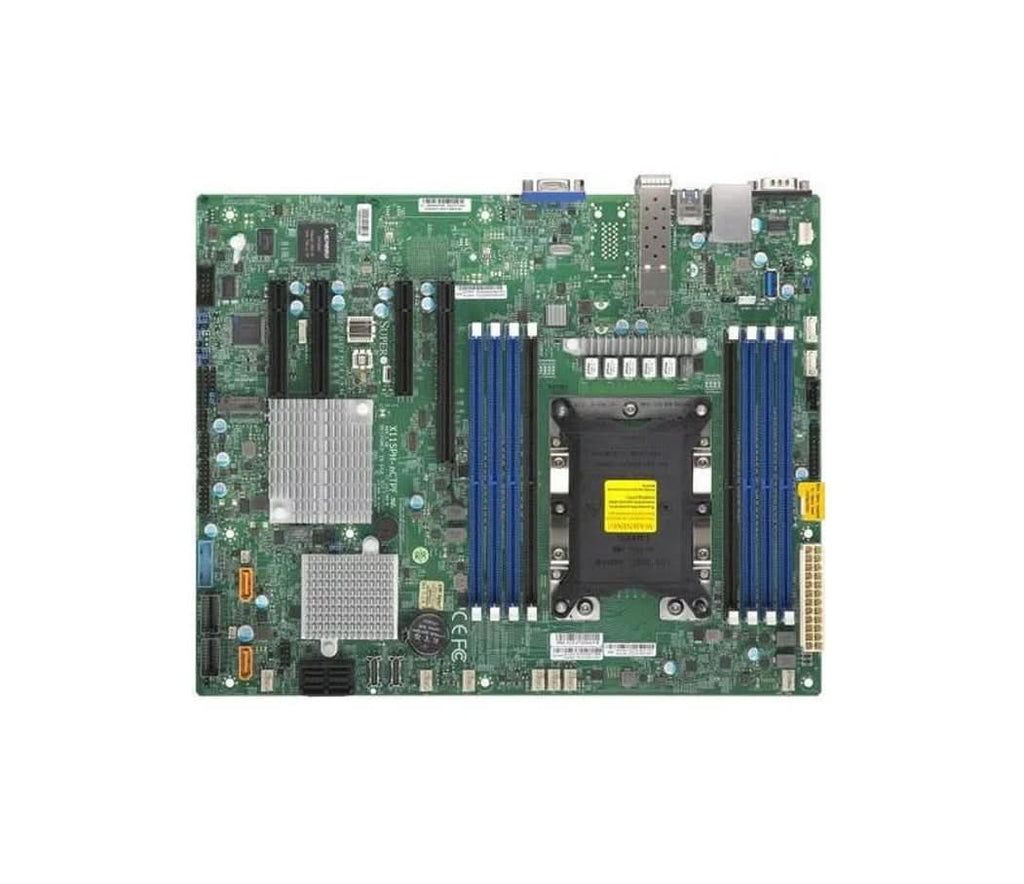

Supermicro MBD-X11SPH-NCTPF-B Intel Xeon 28-Core ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SPH-NCTPF-B is a high-end ATX server motherboard from the X11 generation, specifically designed for storage-intensive and high-performance computing (HPC) applications. The "-B" suffix indicates bulk packaging, which typically includes the motherboard without the retail retail box.
Specifications
Model Number: MBD-X11SPH-NCTPF-B
Brand: Supermicro
Alt Part Number(s): MBD-X11SPH-NCTPF-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SPH-NCTPF-B
Processor Type: Intel Xeon Scalable
Processor Core: 28-Cores
Processor Socket: LGA-3647
Processor Generation: 2nd Gen
Chipset Type: Intel C622
Storage Interfaces: 10 × SATA3 (6 Gbps) ports,8 × SAS3 (12 Gbps) via Broadcom 3008
Network: Dual10G SFP+ ports powered by the Intel X722 controller
USB: Multiple USB (approx. 5 × USB 3.0 + 8 × USB 2.0
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2500 BMC
Memory Supported: 2TB
Memory Speed: 2933MHz
Memory Type: DDR4
Memory Slots: 8 DIMM slots
Expansion Slots: 1 × PCIe 3.0 x16 (x16 or x8)
Error Detection: ECC
TDP: 205W
Form Factor: ATX
*
