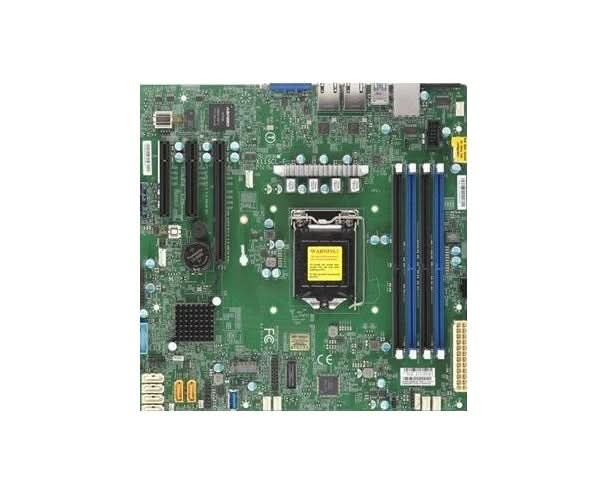

Supermicro MBD-X11SCW-F-O Intel Xeon 8-Core Proprietary WIO Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SCW-F-O is a server-grade motherboard utilizing the Intel C246 chipset in a Proprietary WIO form factor (8" x 13"). Optimized for storage servers and network appliances, it features dual 1GbE LAN ports and integrated system management via IPMI 2.0.
Specifications
Model Number: MBD-X11SCW-F-O
Brand: Supermicro
Alt Part Number(s): MBD-X11SCW-F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SCW-F-O
Series: E-2100/E-2200
Processor Type: Intel Xeon
Processor Core: 8Cores / 16 threads
Processor Socket: LGA-1151 (Socket H4)
Processor Generation: 8th/9th Gen
Chipset Type: Intel C246
Storage Interfaces: 6 × SATA3 + Dual M.2 (PCIe/SATA)
Network: 2 × 1 GbE (Intel I210)
USB: USB 3.1 Gen2/Gen1, USB 2.0, VGA, Serial
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2500 BMC
Memory Supported: 128GB
MemorySpeed: 2666MHz
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x4
Error Detection: ECC
TDP: 95W
Form Factor: Proprietary WIO
*
