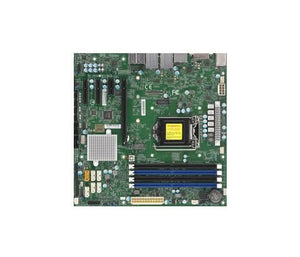

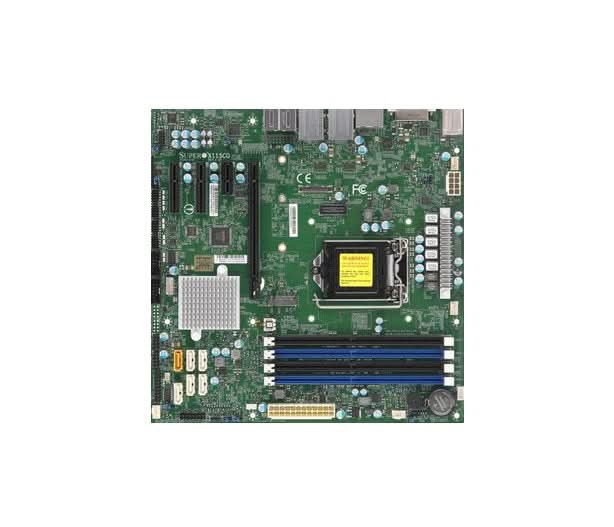

Supermicro MBD-X11SCQ-B LGA-1151 Intel Q370 Micro-ATX Desktop Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SCQ-B is ideal when you need a robust Micro-ATX platform with support for modern Intel 8th/9th Gen CPUs, good PCIe expansion, multiple display outputs, and enterprise-class features like RAID, TPM, and dual LAN controllers — suited for workstations, compact servers, kiosks, or industrial PCs with strong I/O flexibility.
Specifications
Model Number: MBD-X11SCQ-B
Brand: Supermicro
Alt Part Number(s): MBD-X11SCQ-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SCQ-B
Processor Type: Intel Core i9/i7/i5/i3
Processor Socket: LGA-1151 (Socket H4)
Processor Generation: 8th/9th Gen
Chipset Type: Intel Q370
Storage Interfaces: 6 SATA3 (6 Gbps) ports
Network: Dual Gigabit Ethernet ports theIntel i210-AT and Intel PHY i219LM controllers
Video Outputs: 1 DisplayPort, 1 HDMI, 1 DVI-D, and 1 eDP
USB: total of 10 USB 3.2 Gen2 ports and 6 USB 2.0 ports
Audio: Integrated 7.1 HD Audio
RAID: RAID 0, 1, 5, and 10
Memory Supported: 64GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 ×16,1 × PCIe 3.0 ×1,2 × PCIe 3.0 ×4
Error Detection: Non-ECC
TDP: 95W
Form Factor: Micro-ATX
*
