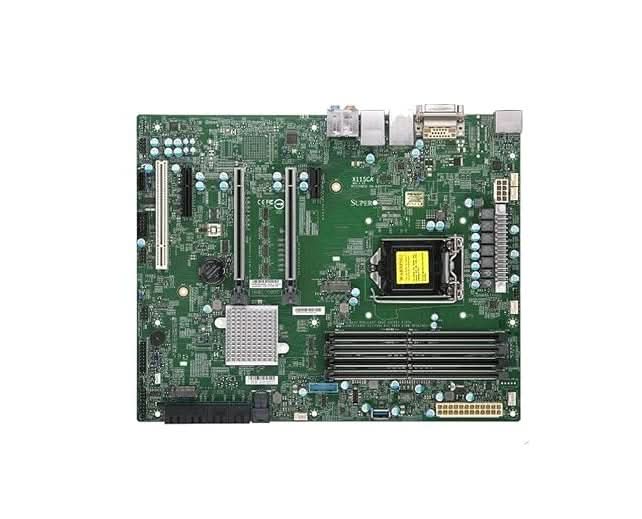

Supermicro MBD-X11SCA-O Intel Xeon LGA-1151 ATX Workstation Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The Supermicro MBD-X11SCA-O is a high-performance ATX workstation motherboard based on the Intel C246 chipset, designed for 8th and 9th Generation Intel Core and Xeon E processors. The "-O" suffix signifies the Retail Pack, which includes the motherboard, manual, cables, and an I/O shield.
Specifications
Model Number: MBD-X11SCA-O
Brand: Supermicro
Alt Part Number(s): MBD-X11SCA-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SCA-O
Series: E-2100/E-2200
Processor Type: Intel Xeon
Processor Socket: LGA-1151 (Socket H4)
Processor Generation: 8th / 9th Gen
Chipset Type: Intel C246
Storage Interfaces: 8 SATA3 (6Gbps) ports
Network: Dual (1GbE) ports the Intel i210-AT and Intel i219-LM controllers
Video Output: 1 HDMI 2.0a, 1 DisplayPort 1.2, and 1 DVI-D port
USB: Includes USB 3.1 Gen 2, USB 3.1 Gen 1, and USB 2.0 headers
Audio: 7.1 HD Audio via Realtek ALC888S codec
RAID: RAID 0, 1, 5, and 10
Graphics: Intel UHD P630
Memory Supported: 128GB
Memory Speed: 2666MHz
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 2 x PCIe 3.0 x16
Error Detection: ECC
TDP: 95W
Form Factor: ATX
*
