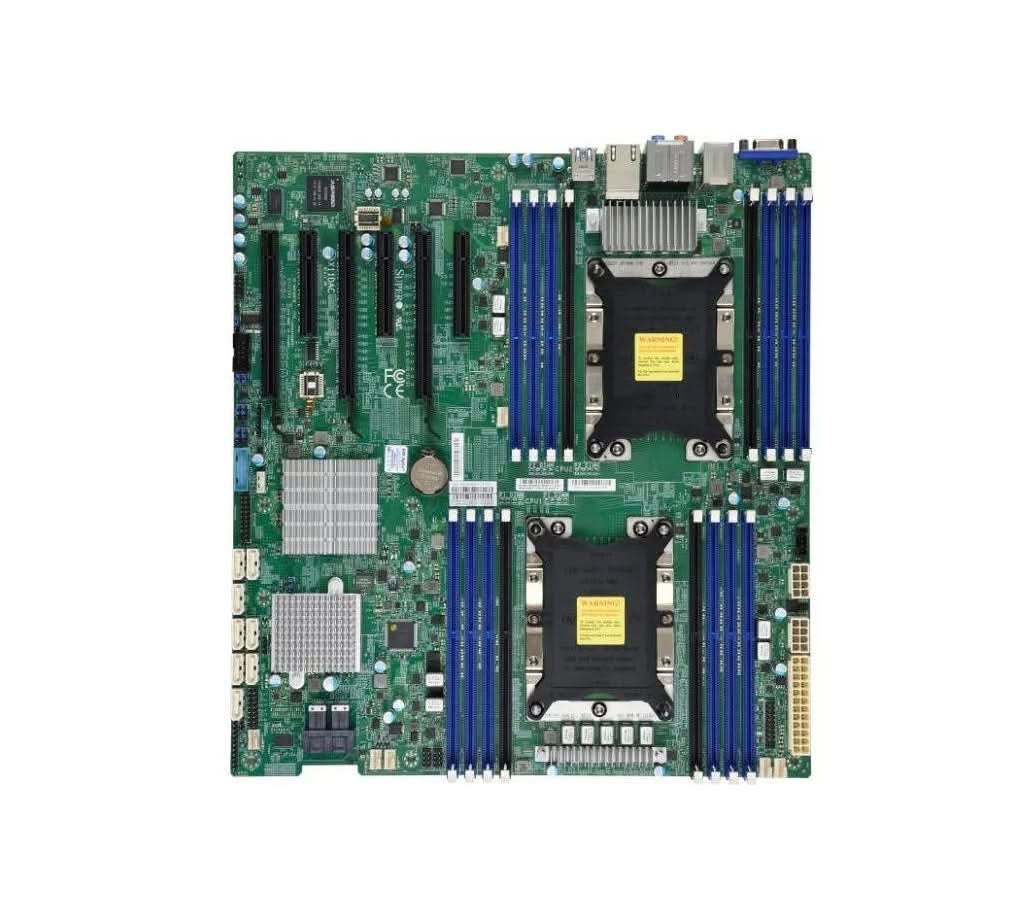

Supermicro MBD-X11DAC-O Intel Xeon 2nd Gen Extended ATX Workstation Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11DAC-O is a high-performance workstation/server motherboard featuring the Intel C621 chipset. The "-O" suffix indicates the Retail Pack version, which typically includes the standard retail box and accessories such as I/O shields and cables.
Specifications
Model Number: MBD-X11DAC-O
Brand: Supermicro
Alt Part Number(s): MBD-X11DAC-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11DAC-O
Processor Type: Intel Xeon Scalable
Processor Socket: LGA‑3647
Processor Generation:2nd Gen
Chipset Type: Intel C621
Storage Interfaces: 8 SATA3 (6Gbps) ports, 8 SAS3 (12Gbps) ports
Network: Dual Gigabit Ethernet (GbE) ports
Rear Ports: 4 USB 3.2 Gen1 ports, 1 VGA port (via BMC), and 2 RJ45 GbE ports
Wireless: Wi-Fi 6 (802.11ax) and Bluetooth 5.1 in the M.2-E1 port
RAID: RAID 0, 1,and 10
Graphics: ASPEED AST2500 BMC
Audio: 7.1 HD Audio support
Memory Supported: 2TB
Memory Type: DDR4
Memory Slots: 16 DIMM
Expansion Slots: 3 PCIe 3.0 x16 slots
Error Detection: ECC
TDP: 205 W
Form Factor: Extended ATX
*
