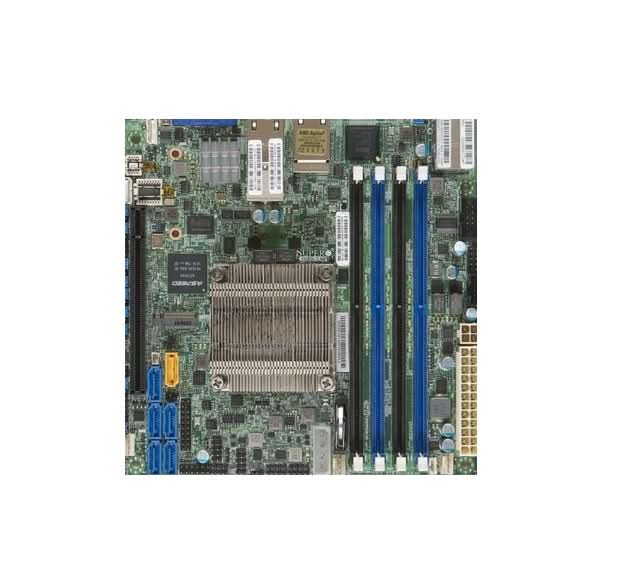

Supermicro MBD-X10SDV-12C+-TLN4F-O Intel Xeon 12-Core Mini‑ITX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X10SDV-12C+-TLN4F-O is a high-performance Mini-ITX server motherboard featuring an integrated 12-core Intel Xeon D-1567 processor. This board is designed for low-power, high-density infrastructure applications such as network appliances and compact 1U servers.
Specifications
Model Number: MBD-X10SDV-12C+-TLN4F-O
Brand: Supermicro
Alt Part Number(s): MBD-X10SDV-12C+-TLN4F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X10SDV-12C+-TLN4F-O
Processor Type: Intel Xeon
Processor Model: D‑1567
Processor Core: 12 Cores/24 threads
Processor Cache: 18 MB L3
Processor Socket: BGA‑1667
Storage Interfaces: 10 × SATA3 + 5 × NVMe internal + 2 × M.2
Network: 2 × 10GBase‑T + 2 × 1GbE + IPMI
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 128GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 ×16; 1 × M.2 PCIe/SATA
Error Detection: ECC
TDP: 65W
Form Factor: Mini‑ITX
*
