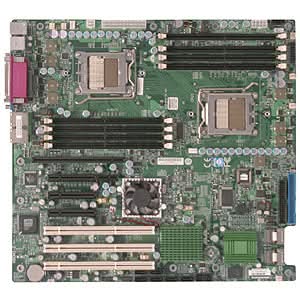

Supermicro MBD-H8DM3-2-O / H8DM3-2 Nvidia Nforce Professional 3600 Socket-F Dual Core E-ATX MBD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
H8DM3-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
- Chipset Manufacturer: NVIDIA
- Chipset Model: MCP55 Pro
- Total Processor Supported: 2
- Processor Technology: HyperTransport Technology
- Processor Socket: Socket F (1207)
- Processor Supported: Opteron
- HyperTransport Speed: 1000 MHz
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 32 GB
- Memory Standard: DDR2-400/PC2-3200
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Serial Attached SCSI (SAS)
- Controller Type: Ultra ATA/133 (ATA-7)
- Controller Type: Serial ATA/300
- Controller Type: Floppy Controller
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: ES1000
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 6
- Number of PCI-X Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x8 Slots: 3
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Number of SAS Interfaces: 8
- Total Number of Onboard USB Ports: 4
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 13.1"
Physical Characteristics
-
Package Contents:
- 1 x H8DM3-2 Server Board
- 1 x Motherboard Manual for H8DM3-2
- 1 x 9-pin Serial Port Cable
- 1 x ATX Floppy Cable
- 2 x SAS Cable
- 1 x ATA 66/100 IDE LP Cable
- 4 x 2ft. Amphenol, SATA Cable
- 1 x Version 1.02 (or newer) Chipset Driver CD
- 1 x I/O Shield for Dual LAN
- 2 x Retention Bracket
-
Additional Information:
- ROHS Compliant
- 8-port LSI 1068E SAS Controller
Chipsets:
- nVidia MCP55 Pro
- AMD 8132
BIOS Features:
- 8Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
- SMBIOS 2.3
Hardware Monitoring:
- Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
- CPU switching voltage regulator
- Total up to 8-fan status tachometer monitoring
- Up to six 3-pin and two 4-pin fan headers
- Status monitor for speed control
- 3-pin fan support
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- I2C Temperature Sensing Logic
- CPU / System Overheat LED
- +5V Standby Alert LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Chipkill Support
- Onboard voltage monitors for two CPU cores, 3.3V, +5Vin, +12Vin, 5V stby and battery voltage
- Fan status monitor with fi rmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Pulse Width Modulated (PWM) fan connectors
- Auto-switching voltage regulator for the CPU core
ACPI Features:
- Microsoft OnNow
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
