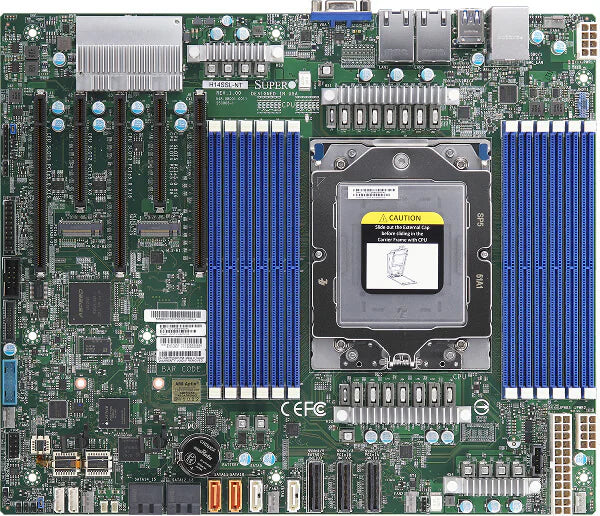

Supermicro MBD-H14SSL-NT-O AMD EPYC 9005/9004 SP5 DDR5-6400 ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Supermicro MBD-H14SSL-NT-O motherboard features an ATX form factor, single Socket SP5 support for AMD EPYC 9005 and 9004 series processors, and 12 DDR5 RDIMM memory slots supporting speeds up to 6400 MT/s depending on CPU and memory configuration. It provides three PCIe 5.0 x16 slots, two PCIe 5.0 x8 slots, two PCIe 4.0 x4 M.2 slots supporting 2280 and 22110 drives, eight SATA 3 ports, dual 10GBase-T LAN ports, up to six USB 3.0 ports, ASPEED AST2600 BMC graphics for IPMI remote management, and six 4-pin PWM fan headers with tachometer monitoring.
Specifications
Model Number: MBD-H14SSL-NT-O
Brand: Supermicro
Alt Part Number(s): MBD-H14SSL-NT-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-H14SSL-NT-O
Form Factor: ATX (12" x 10.1")
CPU Support: Single Socket SP5 (AMD EPYC™ 9005 and 9004 series)
Chipset: System on Chip (SoC)
Memory: 12 DIMM slots supporting DDR5 RDIMM; up to 6400 MT/s 1DPC, dependent on CPU/memory configuration
PCIe Slots: 3 PCIe 5.0 x16 slots; 2 PCIe 5.0 x8 slots
M.2 Interface: 2 PCIe 4.0 x4 slots; form factors 2280 and 22110
SATA: 8 SATA3 ports
Network Ports: Dual 10GBase-T LAN ports via Broadcom BCM57416
USB Ports: Up to 6 USB 3.0 ports; 4 rear; 2 via header
Video: ASPEED AST2600 BMC graphics controller for IPMI remote management
Cooling: 6 PWM 4-pin fan headers with tachometer status monitoring
