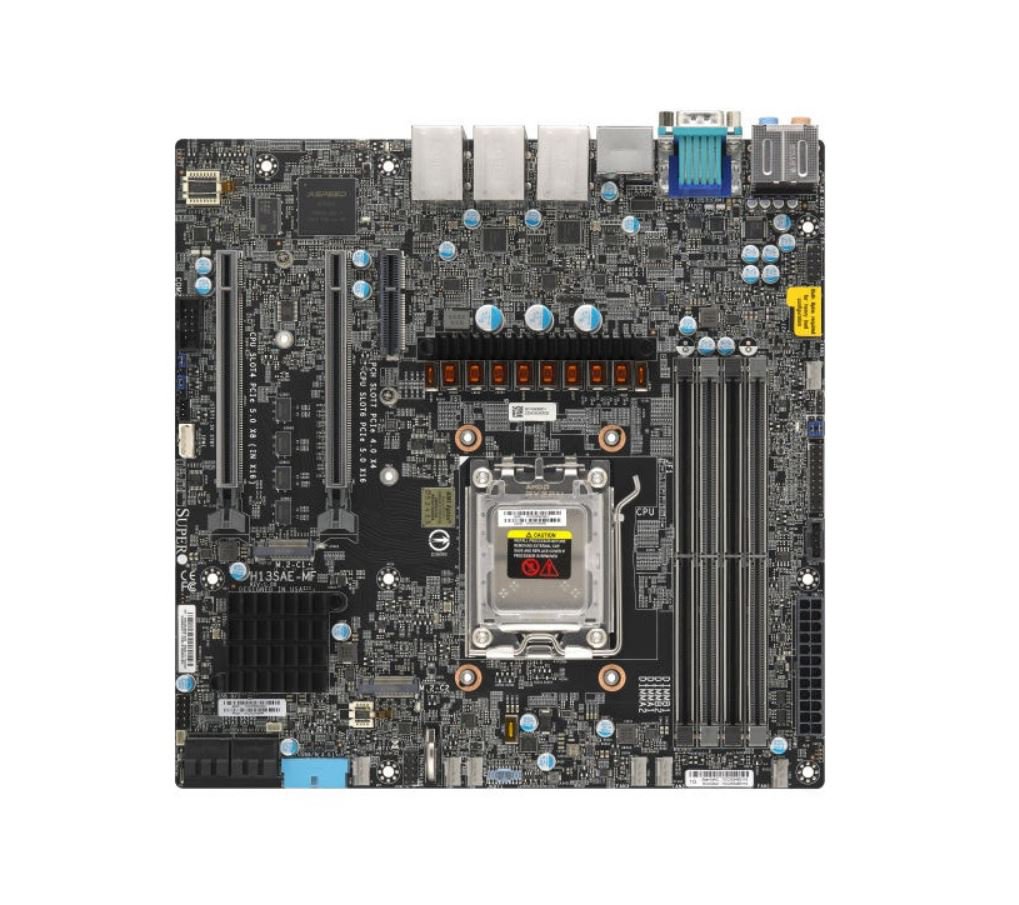

"Image may differ from actual product"
Roll over image to zoom in Click on image to zoom
This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.
How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!
Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.
Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!
Realtime Inventory: Live inventory updates are not available for this product.
- Overview
Overview
The Supermicro MBD-H13SAE-MF-B is a Micro-ATX motherboard for AMD LGA-1718 CPUs, including EPYC 4005/4004 and Ryzen 7000/9000/8700G series. It features PCIe 5.0 x16 for advanced connectivity and high-performance computing.
Specifications
Model Number: MBD-H13SAE-MF-B
Brand: Supermicro
Alt Part Number(s): MBD-H13SAE-MF-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: MBD-H13SAE-MF-B
Form Factor: Micro-ATX
Dimension: 9.6" x 9.6" (24.384cm x 24.384cm)
CPU: Single AMD EPYC 4004/4005 or Ryzen 7000/9000 Series
Core Count: Up to 16C/32T
Memory: 4 DIMM Slots; Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Error Detection: ECC memory (corrects single-bit, detects double-bit errors)
Chipset: B650
SATA: 4 SATA (6Gbps); RAID 0/1/10 support
Network Controller: Dual Intel i210 1GbE LAN; Dedicated IPMI LAN with ASPEED AST2600 BMC
USB: 2 USB 3.2 Gen1 (Header); 3 USB 3.2 Gen2 Type-A (Rear); 3 USB 3.2 Gen2 Type-C (Rear); 1 USB 2.0 (Header)
Video: 1 HDMI 2; 1 DisplayPort; 2 VGA Type-C (Rear)
Serial: 1 COM port (Header)
Audio: ALC 888S HD Audio
TPM: TPM 2.0 Header
PCIe Slots: 1 PCIe 4.0 x4; 2 PCIe 5.0 x16
M.2 Slots: 2 M.2 PCIe 5.0 x4 (M-key 2280/22110)
BIOS: AMI 32MB SPI Flash; ACPI 6.4; SMBIOS 3.5+; UEFI 2.8
Voltage Monitoring: +12V, +3.3V, +5V, CPU and system temperature, thermal trip support
Fans: 7x 4-pin fan headers (up to 7 fans)
