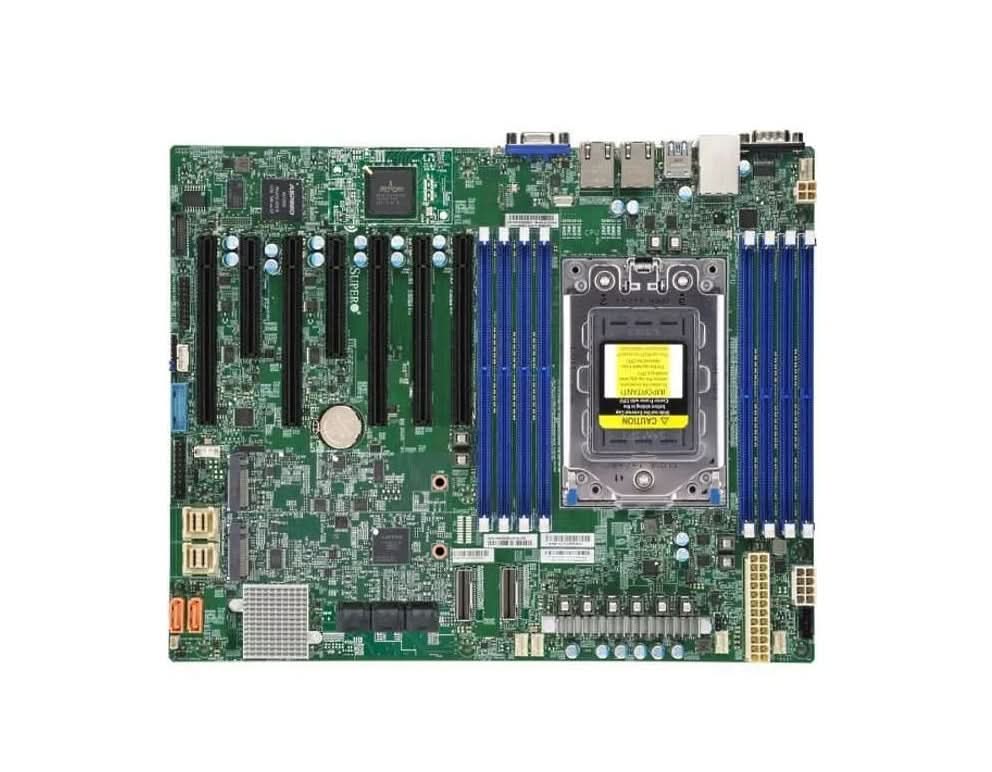

Supermicro MBD-H12SSL-NT-O AMD EPYC 64-Core ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-H12SSL-NT-O is a high-performance ATX server motherboard designed for single-socket AMD EPYC processors. The "-O" suffix indicates the Retail Pack version, which includes a standard I/O shield and six SATA cables.
Specifications
Model Number: MBD-H12SSL-NT-O
Brand: Supermicro
Alt Part Number(s): MBD-H12SSL-NT-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-H12SSL-NT-O
Series: 7002 / 7003
Processor Type: AMD EPYC
Processor Core: 64-Cores
Processor Socket: (SP3) LGA 4094
Storage Interfaces: 8 SATA3 6Gbps ports
USB: Up to 6 × USB 3.0 (4 rear + 2 via header)
Network: Dual10GBase-T (10GbE) LAN ports via a Broadcom BCM57416 controller
Graphics: ASPEED AST2500 BMC
Memory Supported: 2TB
Memory Type: DDR4
Memory Channel: 8-Channel
Memory Slots: 8 DIMM slots
Expansion Slots: Total of 7 PCIe 4.0 slots
Fan Headers: 7 × PWM 4-pin with tachometer monitoring
Error Detection: ECC
Form Factor: ATX
*
