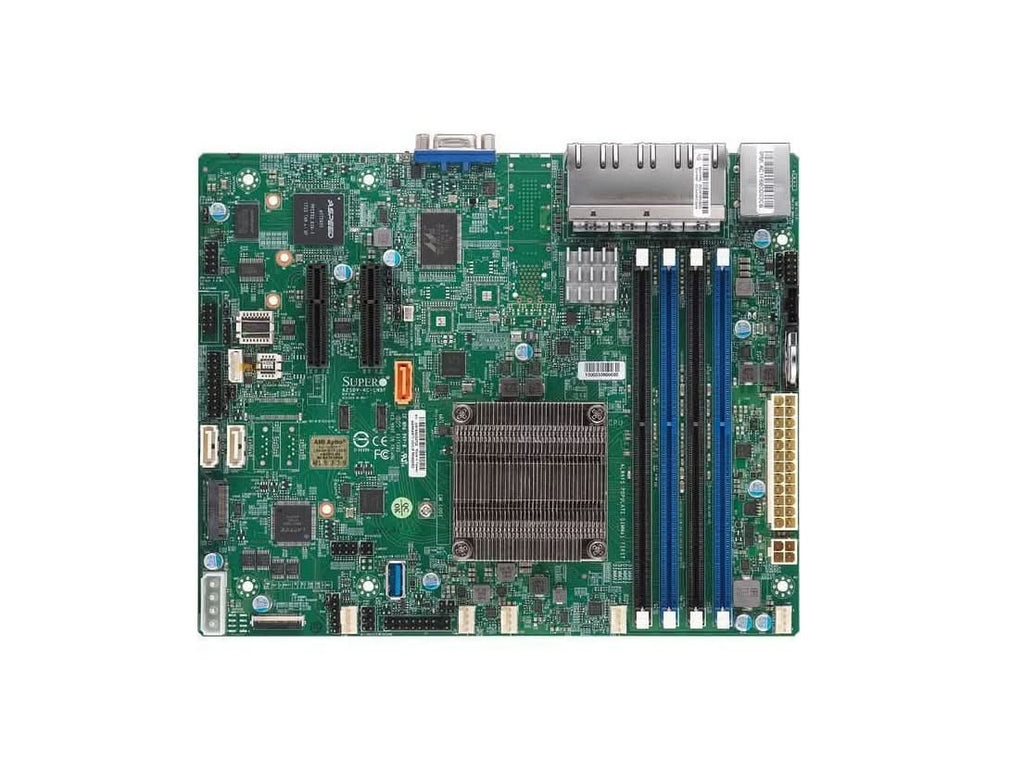

Supermicro MBD-A2SDV-4C-LN8F-O Intel Atom 4Core Flex-ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-A2SDV-4C-LN8F-O is a retail-packaged Flex-ATX motherboard featuring an integrated 4-core Intel Atom C3000 series processor, specifically designed for efficient entry-level server and embedded applications.
Specifications
Model Number: MBD-A2SDV-4C-LN8F-O
Brand: Supermicro
Alt Part Number(s): MBD-A2SDV-4C-LN8F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDV-4C-LN8F-O
Processor Type: Intel Atom
Processor Model: C3558
Processor Core: 4Cores, 4 threads
Processor Cache: 8MB
Processor Socket: BGA-1310
Storage Interfaces: 3 SATA3 (6Gbps) ports and 1 SuperDOM (Disk on Module) port
Network: 8 (1GbE) RJ45 ports via the Intel C3000 SoC and Intel I350-AM4 controller
USB Ports: 3 USB 3.0 ports and 2 USB 2.0 ports via internal headers
Graphics: ASPEED AST2400 BMC
MemoryCapacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 PCIe 3.0 x2 slot
Error Detection: ECC
TDP: 16W
Power Input: 12 V DC
Form Factor: Flex-ATX
*
