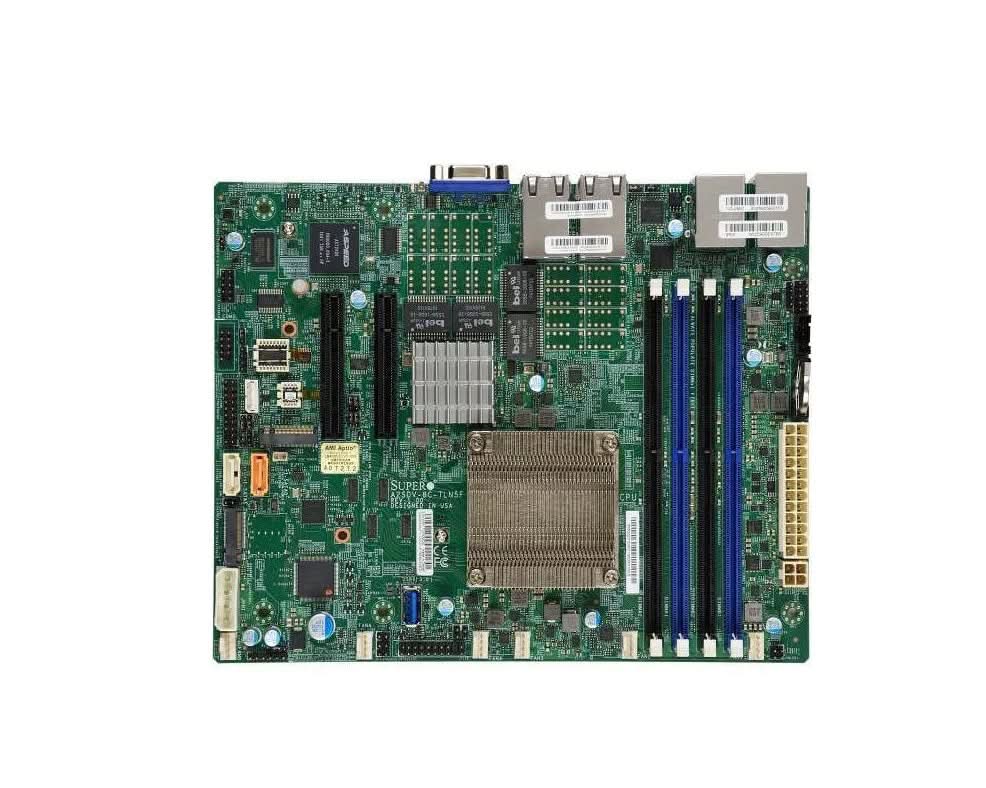

Supermicro MBD-A2SDV-16C-TLN5F-B Intel Atom 16-Core Flex-ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The MBD-A2SDV-16C-TLN5F-B is a Flex ATX embedded/server motherboard built around the Intel® Atom® C3958 16-core SoC, offering massive memory support (up to 256 GB ECC), quad 10 GbE + 1 GbE networking, dual M.2 & SATA storage, PCIe expansion, rich I/O (USB, VGA, COM), and IPMI/BMC remote management — ideal for compact servers, network appliances, storage platforms, virtualization hosts, and embedded enterprise deployments where high-throughput networking and low power are priorities.
Specifications
Model Number: MBD-A2SDV-16C-TLN5F-B
Brand: Supermicro
Alt Part Number(s): MBD-A2SDV-16C-TLN5F-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDV-16C-TLN5F-B
Processor Type: IntelAtom
Processor Model: C3958
Processor Core: 16 cores/16 threads
Processor Socket: FCBGA-1310
Storage Interfaces: 2 SATA3 (6Gbps) ports controlled by the SoC
Network: 4 x 10GbE LAN ports via Intel X557,1 x 1GbE LAN port
USB: 1 VGA port, 5 USB 3.0 ports (4 rear, 1 Type-A), and 2 USB 2.0 ports
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 x PCIe 3.0 x8 slot
Error Detection: ECC
TDP: 31W
Power Input: 12V DC
Form Factor: Flex-ATX
*
