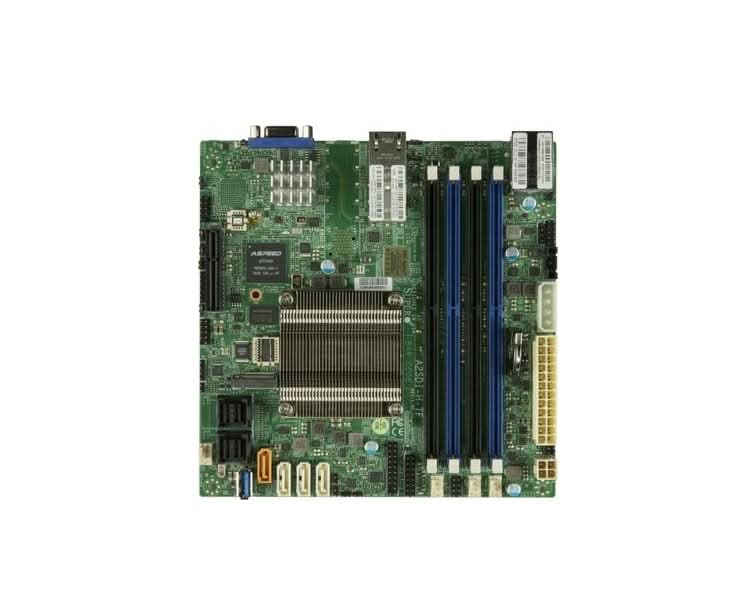

Supermicro MBD-A2SDI-H-TF-O Intel Atom 8-Core Mini-ITX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The MBD-A2SDI-H-TF-O is a Mini-ITX embedded server motherboard with a low-power 8-core Intel Atom C3758 SoC, dual 10 GbE LAN, abundant storage interfaces (12 SATA3 + M.2 + SuperDOM), robust memory capacity with ECC, and full IPMI/BMC remote management capabilities. It’s ideal for compact servers, NAS appliances, network appliances, and data-centric embedded systems requiring high I/O throughput in a small form factor.
Specifications
Model Number: MBD-A2SDI-H-TF-O
Brand: Supermicro
Alt Part Number(s): MBD-A2SDI-H-TF-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDI-H-TF-O
Processor Type: Intel Atom
Processor Model: C3758
Processor Core: 8 cores / 8 threads
ProcessorCache: 16MB
Processor Socket: BGA-1310
Storage Interfaces: 12 × SATA3 (6 Gb/s) ports and 2 Mini-SAS HD
Network: 2 × 10 GbE RJ45 ports via Intel C3000 SoC
USB: 1 USB 3.0 Type-A port, 1 USB 3.0 header, and 4 USB 2.0 ports
Video: 1 x VGA port
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 ×4
Error Detection: ECC
TDP: Up to 25W
Power Input: 12V DC
Form Factor: Mini-ITX
*
