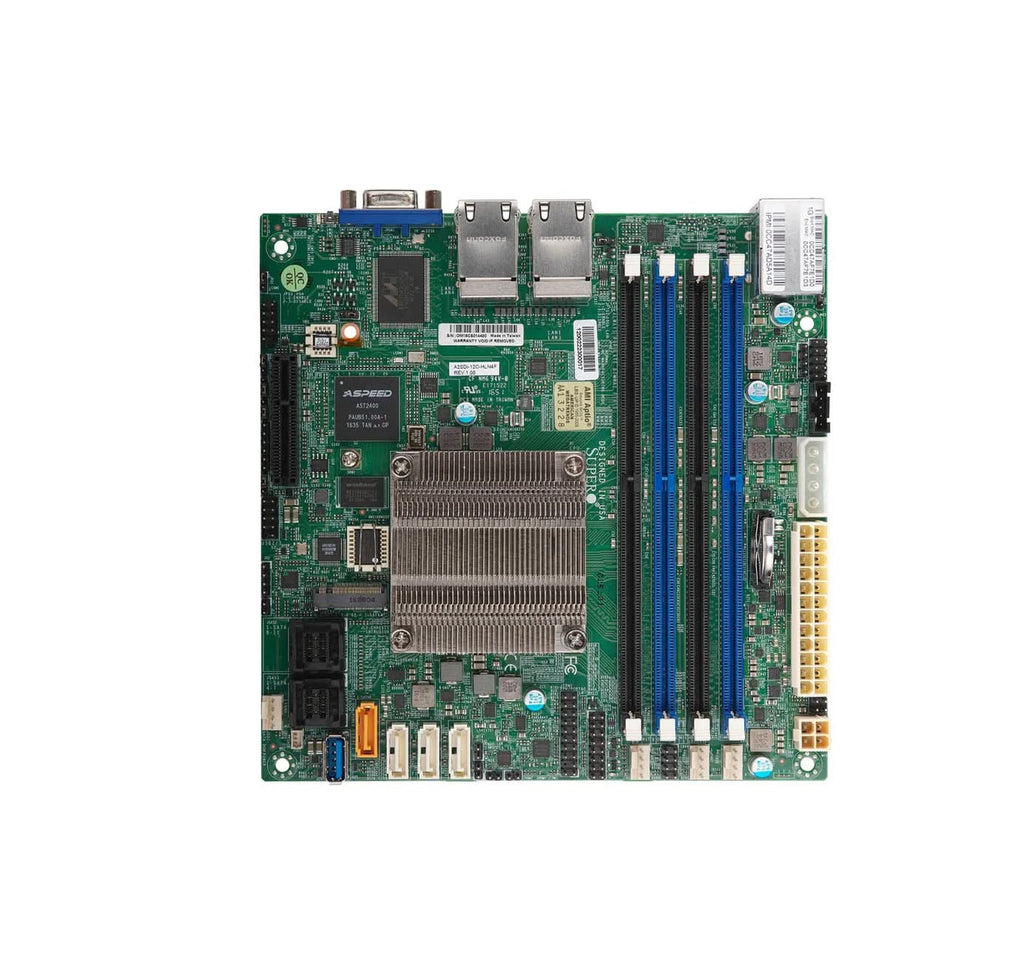

Supermicro MBD-A2SDI-8C-HLN4F-O Intel Atom 8-Core Mini-ITX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-A2SDI-8C-HLN4F-O is a high-density, low-power Mini-ITX motherboard featuring an integrated 8-core Intel Atom C3758 processor. Part of the Denverton SoC family, it is designed for networking appliances, storage servers, and embedded applications that require high reliability and high storage I/O.
Specifications
Model Number: MBD-A2SDI-8C-HLN4F-O
Brand: Supermicro
Alt Part Number(s): MBD-A2SDI-8C-HLN4F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDI-8C-HLN4F-O
Processor Type: Intel Atom
Processor Model: C3758
Processor Core: 8-Cores/8 threads
Processor Speed: 2.20GHz
Processor Cache: 16MB
Processor Socket: FCBGA-1310
Processor Generation: 3rd Gen
Storage Interfaces: 12 × SATA3 + M.2 PCIe/SATA
Network: Quad-portGigabit Ethernet (1GbE) LAN via the Intel C3000 SoC
USB: 1 × USB 3.x, 4 × USB 2.0
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 ×4
Error Detection: ECC
TDP: 25W
Power Input: 12V DC
Form Factor: Mini-ITX
*
