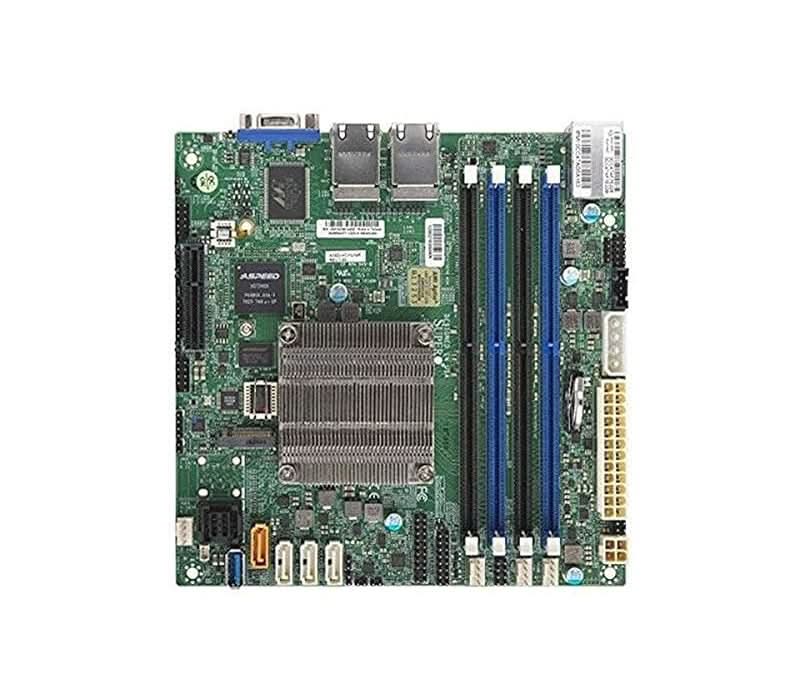

Supermicro MBD-A2SDI-4C-HLN4F-B Intel Atom 4-Core Mini-ITX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-A2SDI-4C-HLN4F-B is a specialized Mini-ITX server motherboard featuring an integrated Intel Atom C3558 processor, designed for embedded networking and low-power storage solutions. The "-B" suffix denotes bulk packaging, which typically ships without individual retail boxing or accessories.
Specifications
Model Number: MBD-A2SDI-4C-HLN4F-B
Brand: Supermicro
Alt Part Number(s): MBD-A2SDI-4C-HLN4F-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDI-4C-HLN4F-B
Processor Type: Intel Atom
Processor Model: C3558
Processor Core: 4Cores / 4 threads
Processor Cache: 8MB
Processor Socket: FCBGA-1310
Storage Interfaces: 8 SATA3 (6Gbps) ports
Network: Quad Gigabit Ethernet (1GbE) LAN ports powered by the Intel C3000 SoC
USB: One USB 3.0 Type-A port, and four USB 2.0 ports
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 x4
Error Detection: ECC
Fan Headers: 4 × 4-pin (PWM control supported)
TDP: 16W
Power Input: 12 V DC
Form Factor: Mini-ITX
*
